Product Info

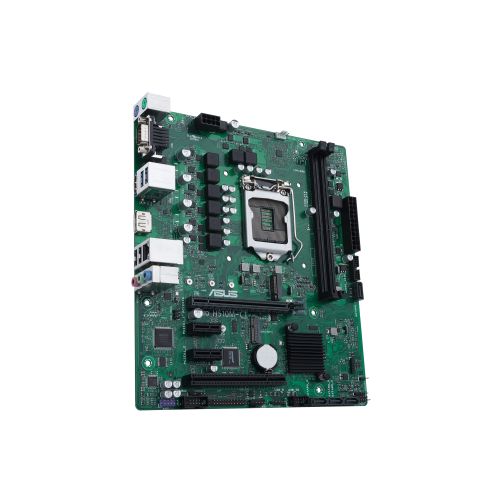

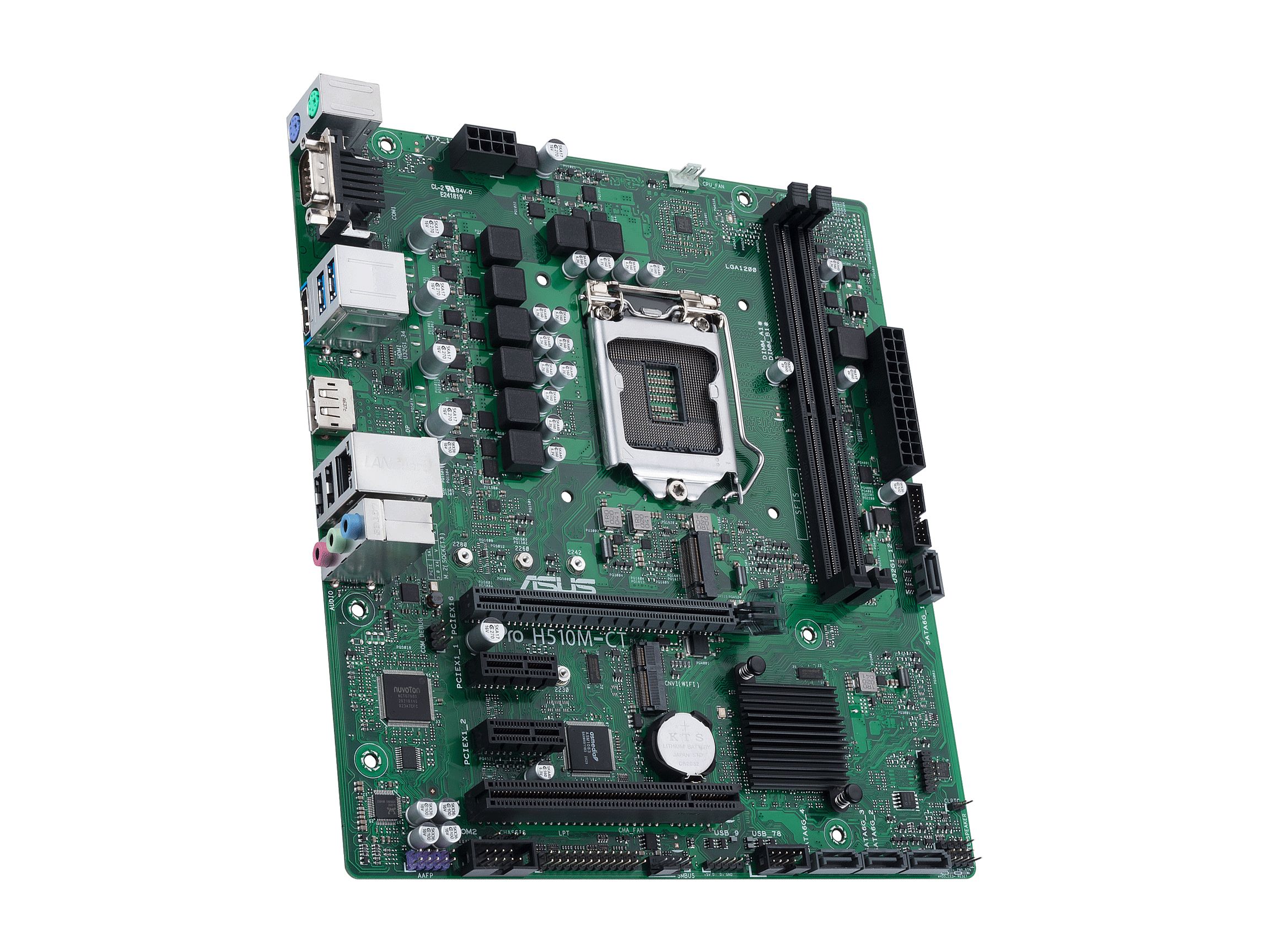

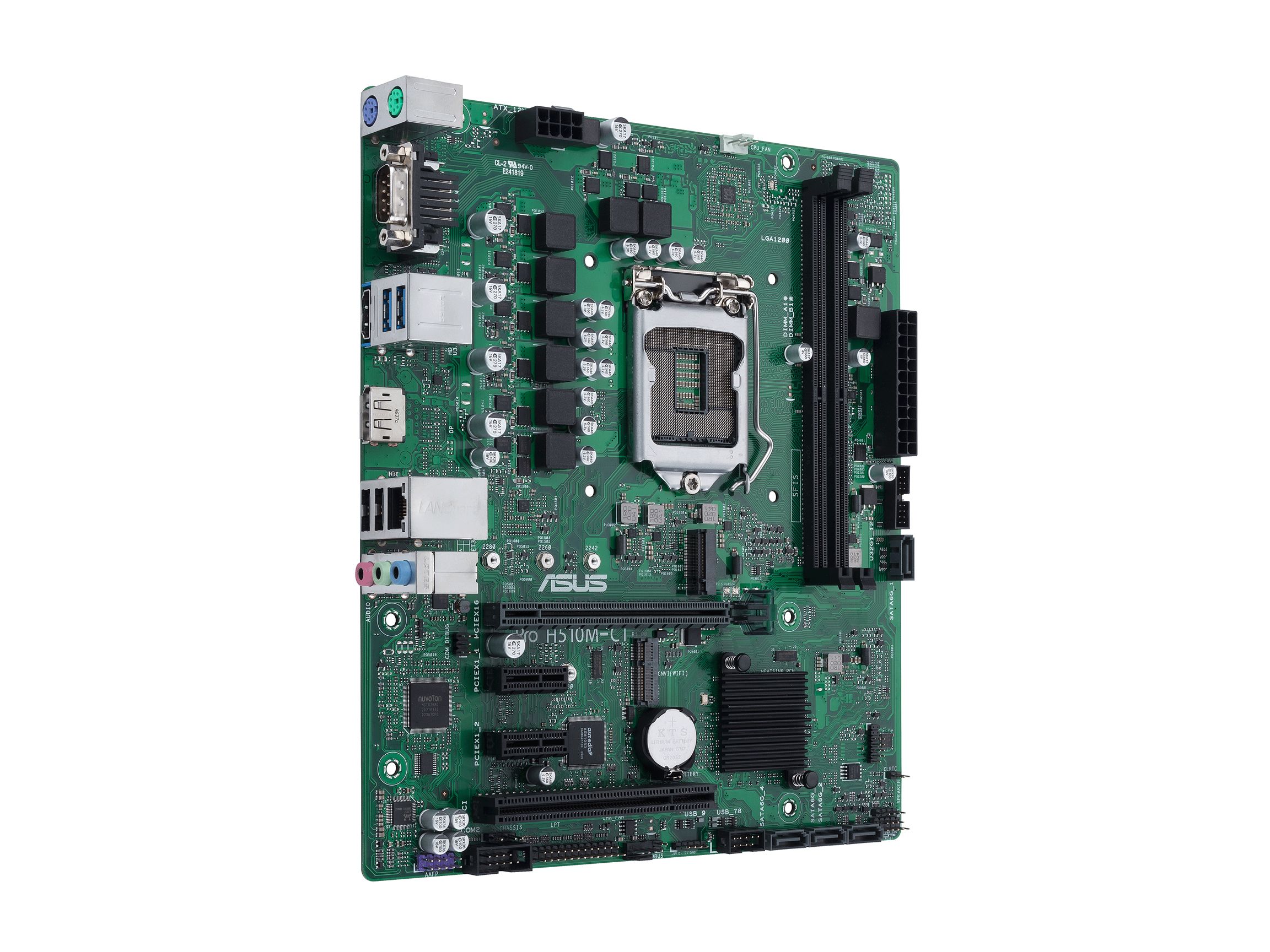

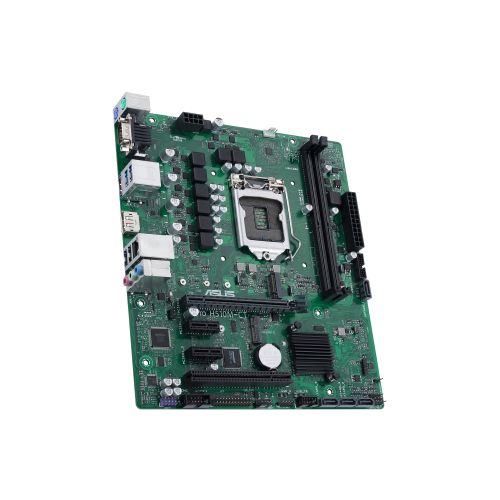

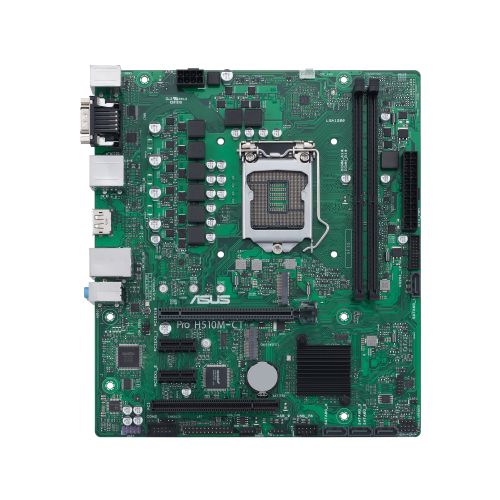

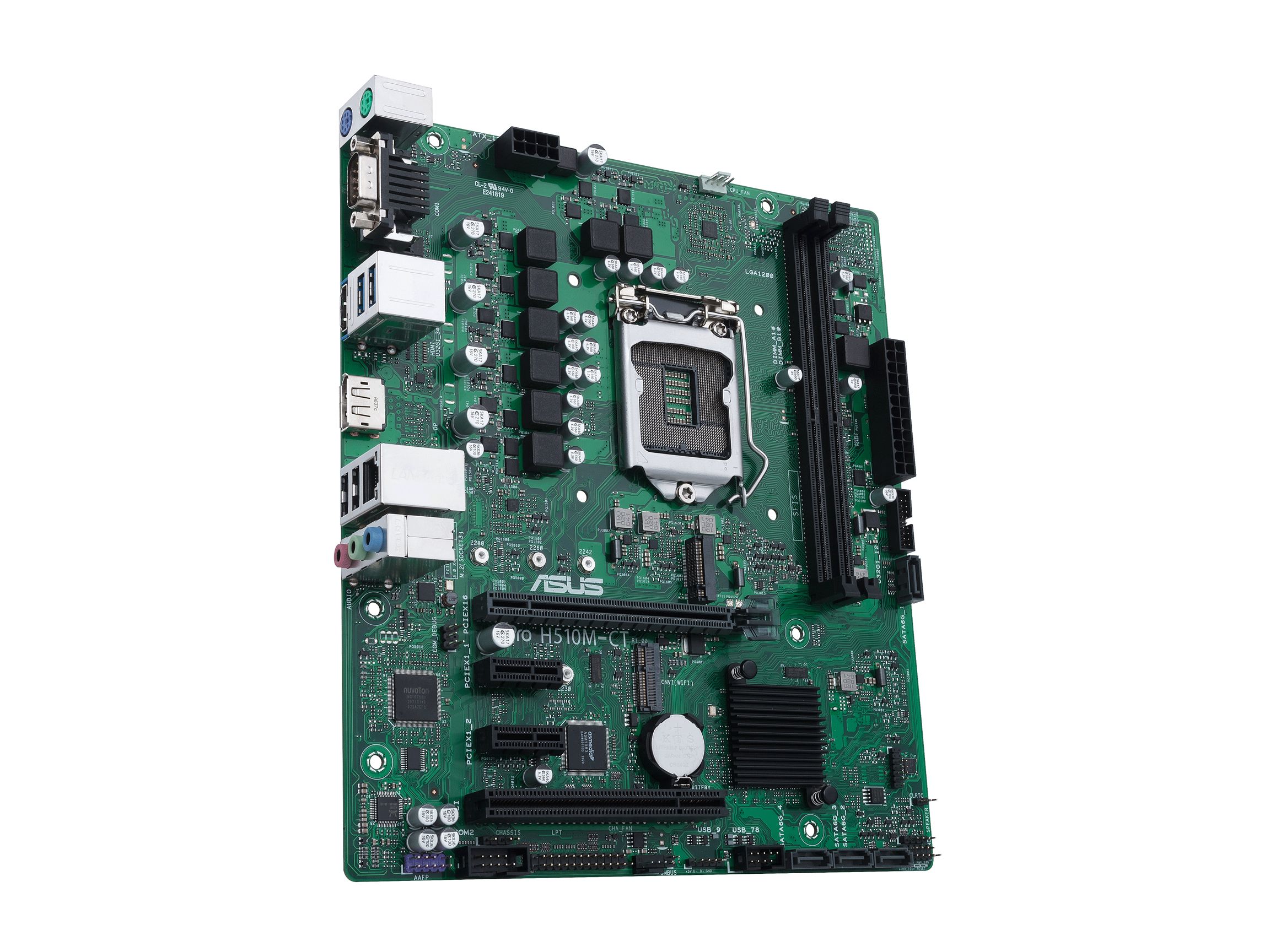

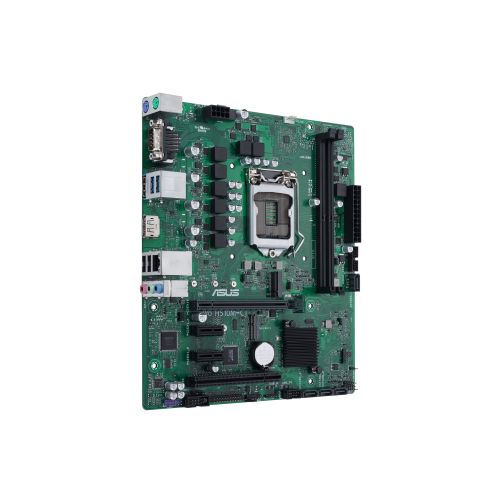

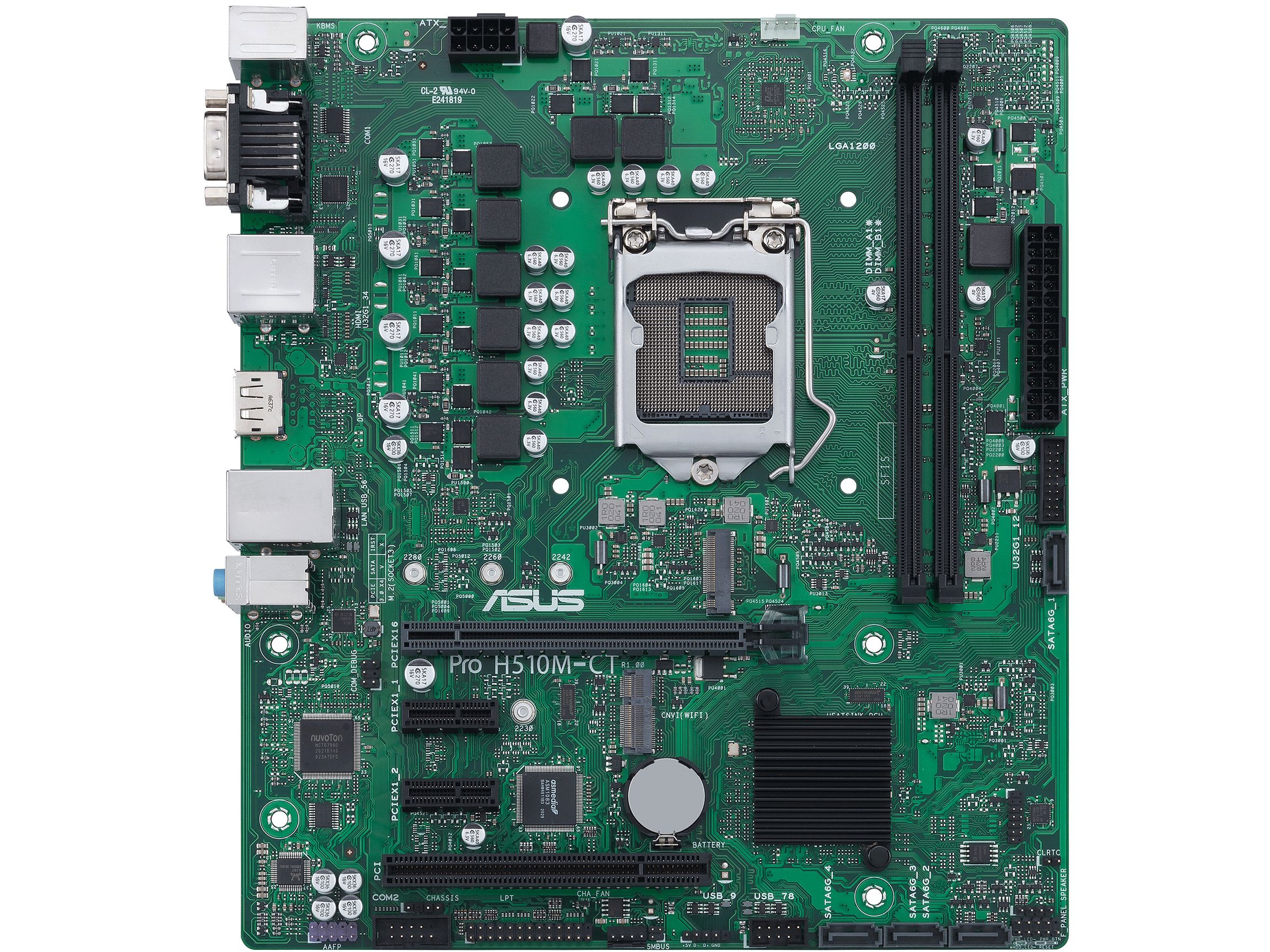

ASUS Pro H510M-CT/CSM mATX Commercial Motherboard

Model

Brand ASUS
Model PRO H510M-CT/CSM

Supported CPU

CPU Socket Type LGA 1200
CPU Type Supports 11th Gen / 10th Gen Intel Core Processors*Supports Intel Pentium Gold and Celeron Processors* * Refer to www.asus.com for CPU support list.
Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipsets

Chipset Intel H510

Onboard Video

Onboard Video Chipset Supported only by CPU with integrated graphic

Memory

Number of Memory Slots 2x288pin (DDR4)
Memory Standard DDR4 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133** 11th Gen Intel processors support 2933 / 2800 / 2666 / 2400 / 2133 natively.* 10th Gen Intel Core i9 / i7 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666.* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Maximum Memory Supported 64GB
Channel Supported Dual Channel

Expansion Slots

PCI Express 4.0 x16 1 x PCIe 4.0/3.0 x16 slot** Actual support may vary by CPU.
PCI Express x1 2 x PCIe 3.0 x1
PCI Slots 1 x PCI Slot
Other Slots M.2 slot only (Key E, CNVi)** Wi-Fi module is sold separately.

Storage Devices

SATA 6Gb/s 4 x SATA 6Gb/s
M.2 1 x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)** The M.2 slot shares bandwidth with the SATA6G_2 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_2 port cannot be used.

Onboard Audio

Audio Chipset Realtek ALC897
Audio Channels 7.1 Channels

Onboard LAN

LAN Chipset Intel I219-V
Max LAN Speed 1Gbps

Rear Panel Ports

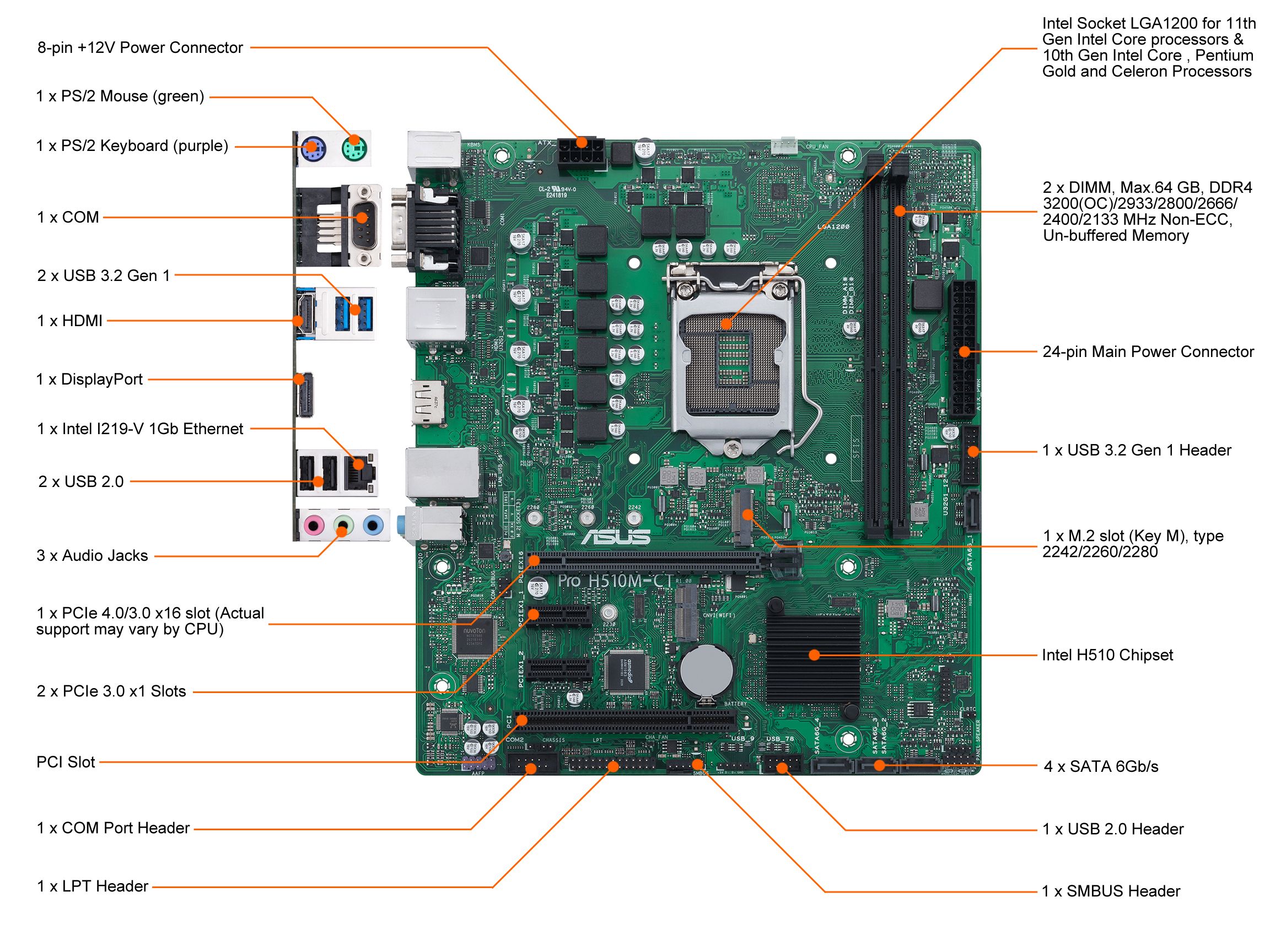

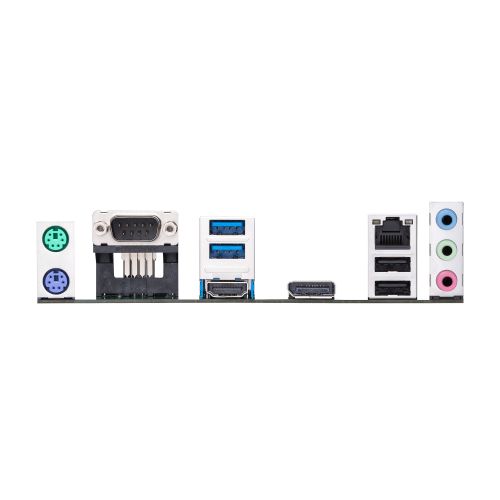

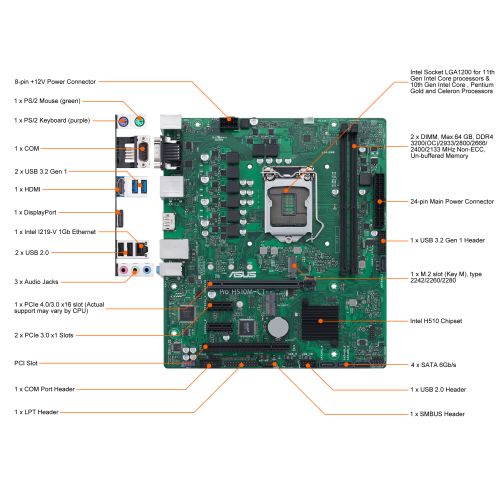

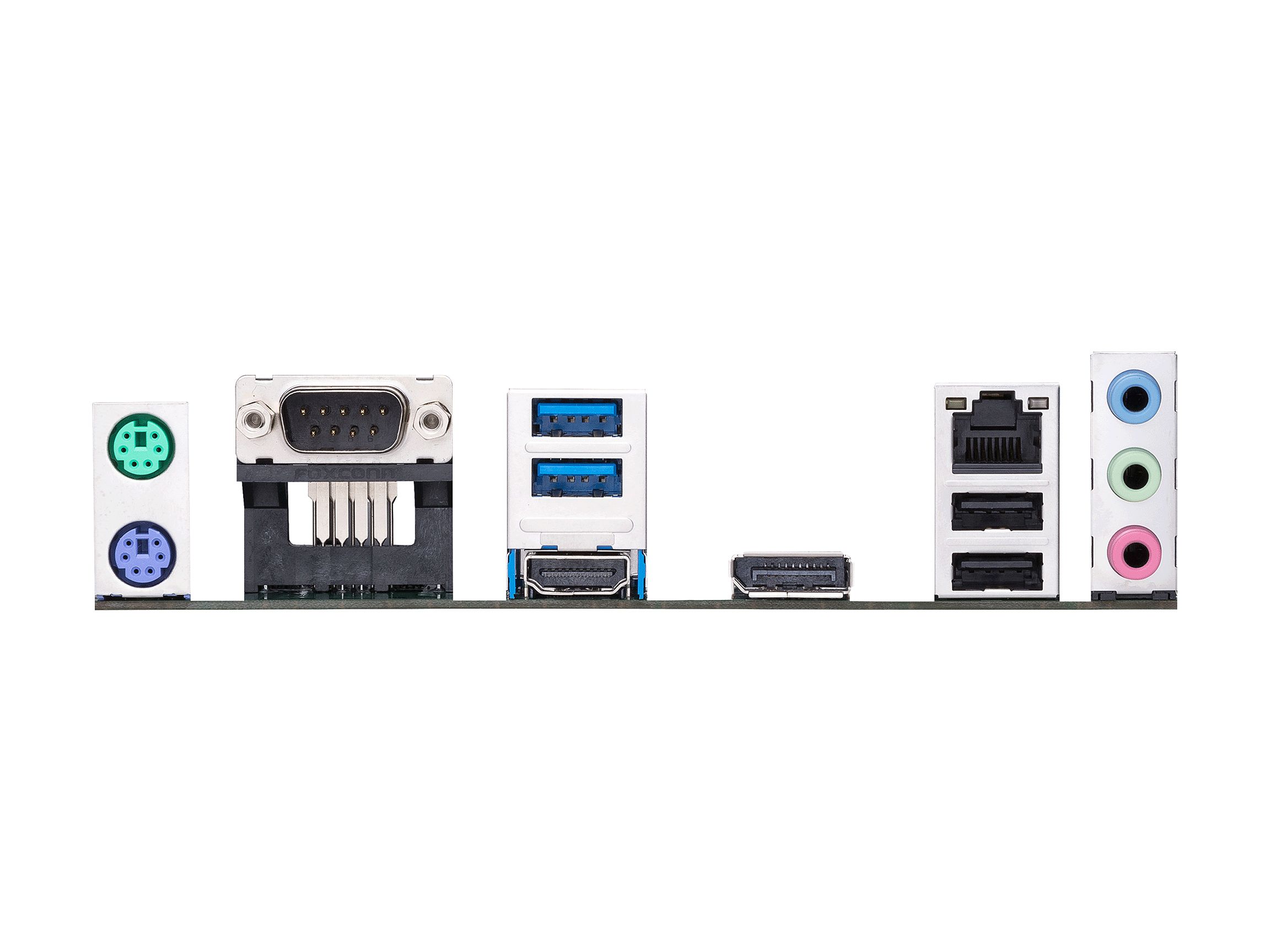

Back I/O Ports 2 x USB 3.2 Gen 1 ports (2 x Type-A)2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort1 x HDMI port1 x Intel I219-V 1Gb Ethernet port3 x Audio jacks1 x COM port1 x PS/2 Keyboard (purple) port1 x PS/2 Mouse (green) port

Internal I/O Connectors

Onboard USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports1 x USB 2.0 header supports additional 2 USB 2.0 ports1 x USB 2.0 header supports additional 1 USB 2.0 port
Other Connectors Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin Chassis Fan headerMiscellaneous1 x Clear CMOS header1 x Chassis intrusion header1 x COM Port header1 x Front panel audio header (AAFP)1 x COM debug header1 x LPT header1 x SMBUS header1 x Speaker header1 x 10-1-pin System panel heade

Physical Spec

Form Factor Micro ATX

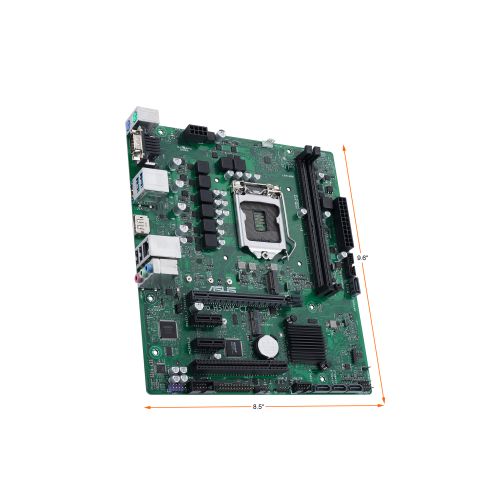

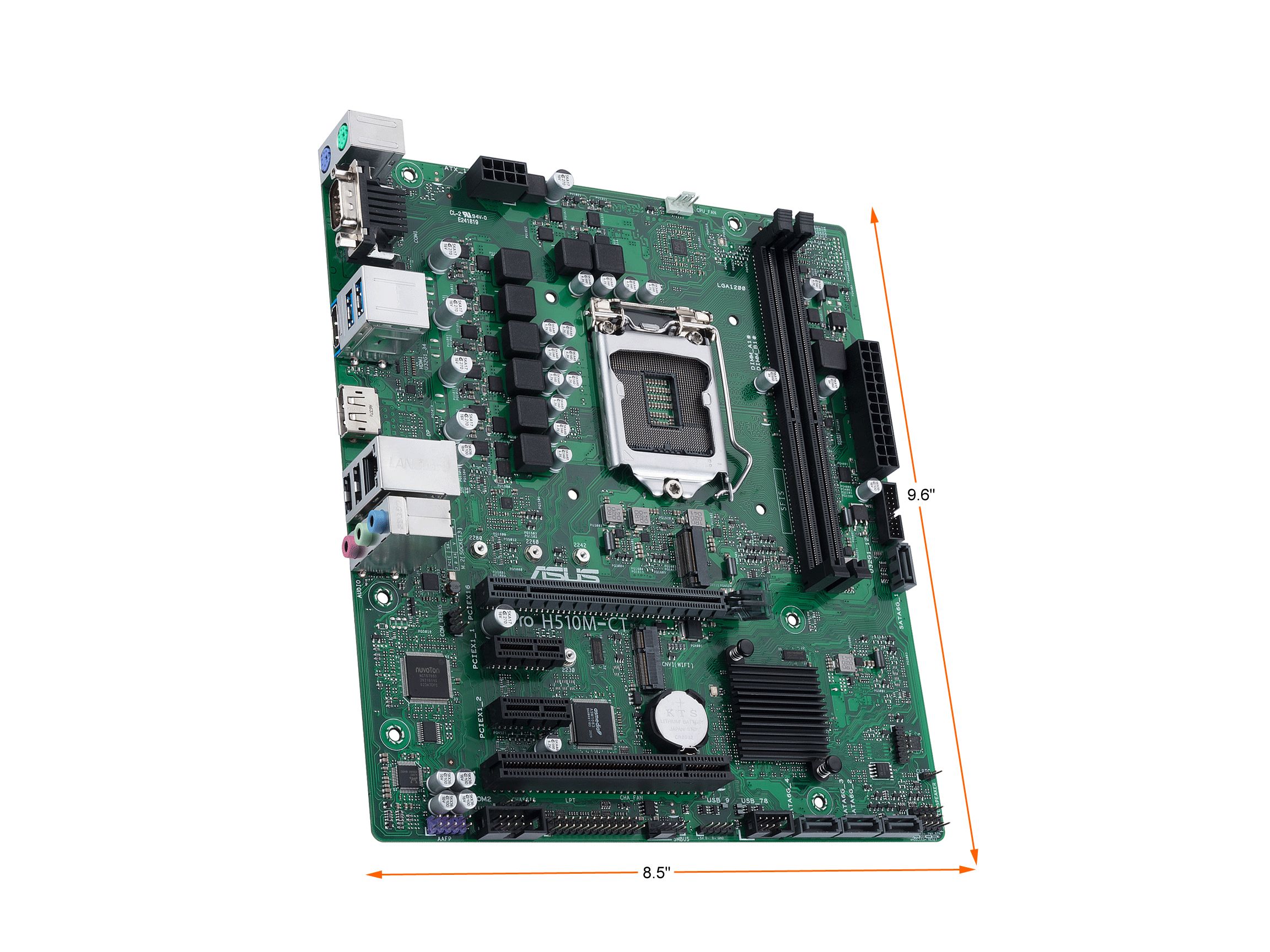

Dimensions (W x L) 9.6" x 8.5"
Power Pin 1 x 24-pin Main Power connector1 x 8-pin +12V Power connecto

Additional Information

Date First Available November 19, 2023
