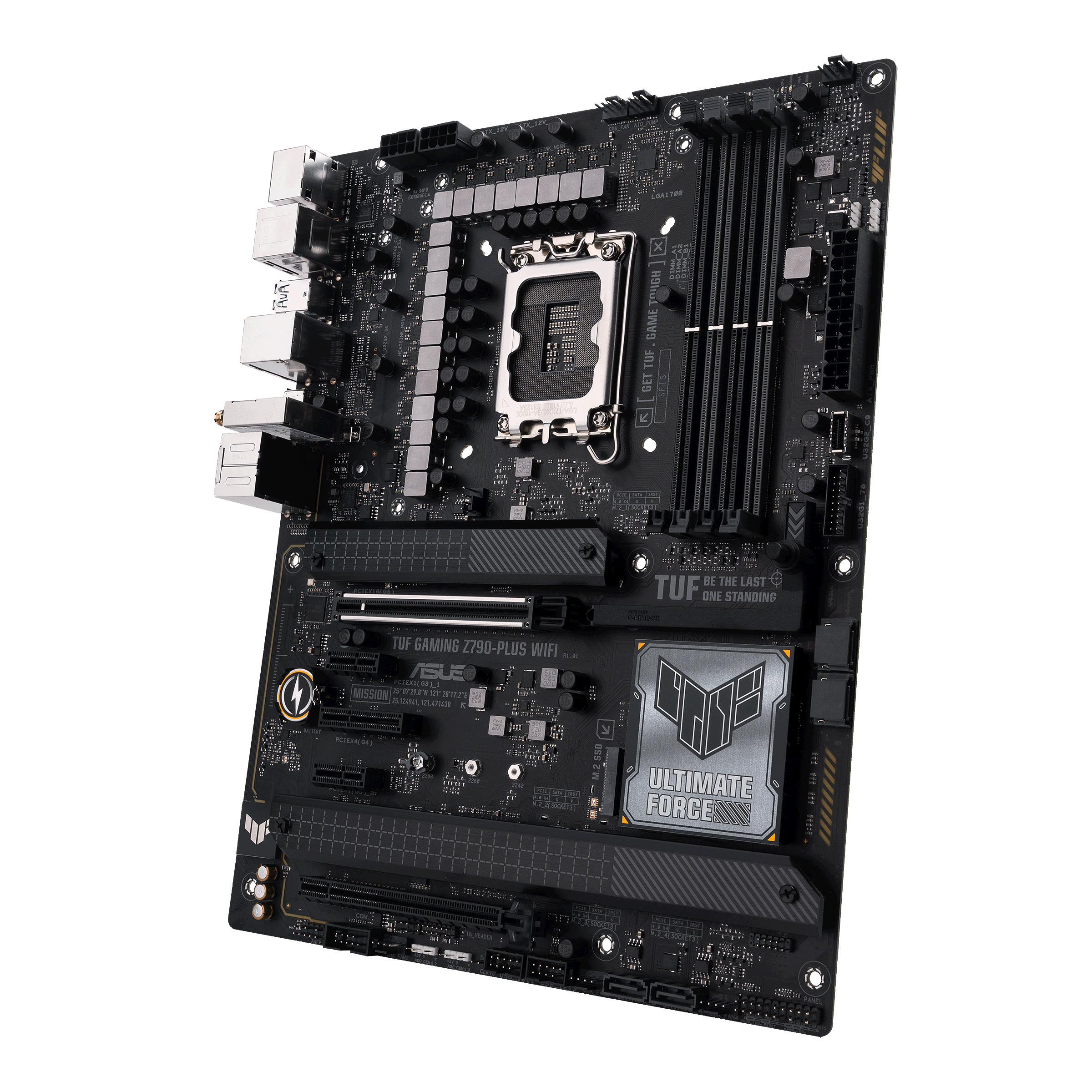

ASUS TUF Gaming Z790-Plus WiFi 6E, DDR5, Quad M.2, PCIe 5.0, USB 3.2, USB Type-C, Bluetooth 5.2
Close this Window
Product Info

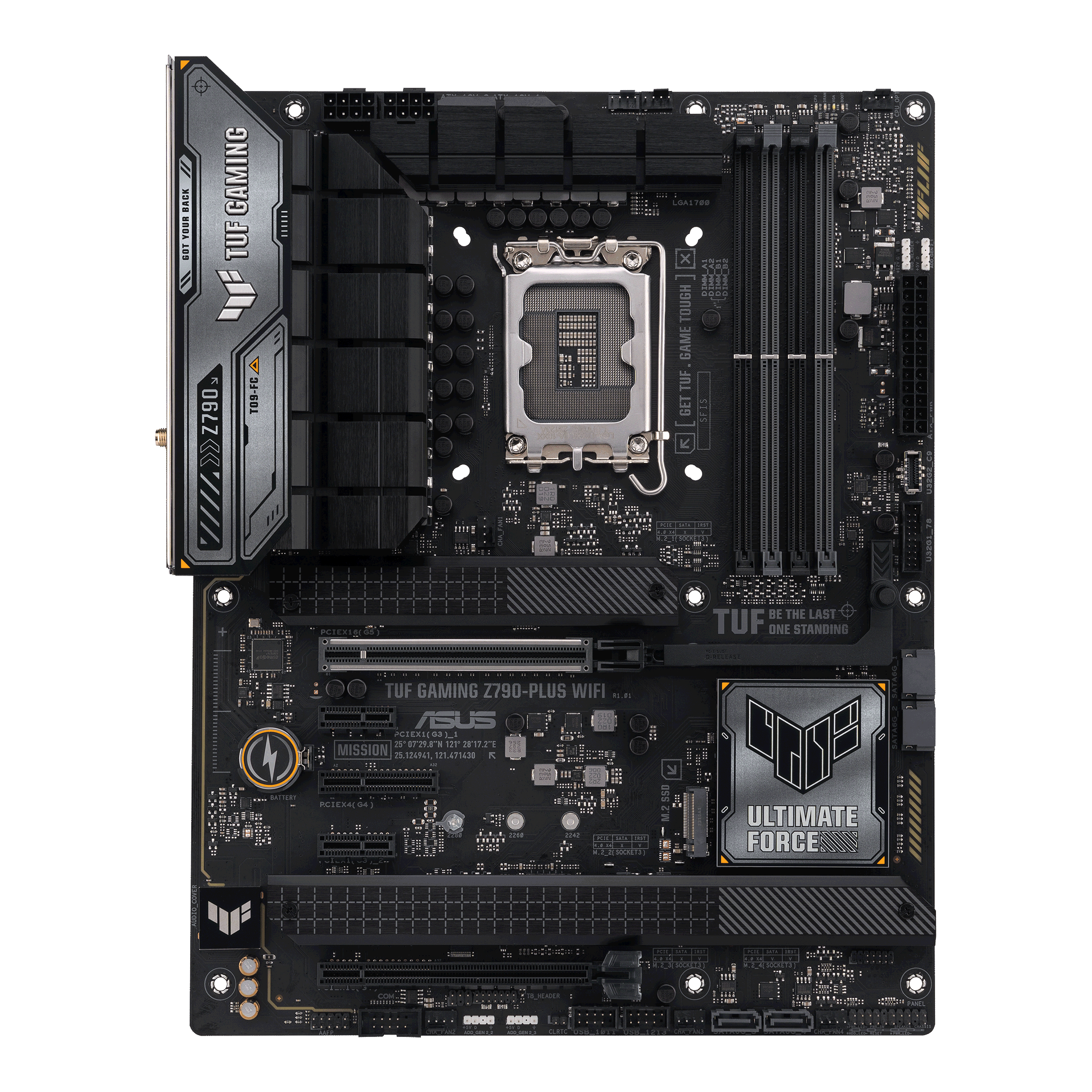

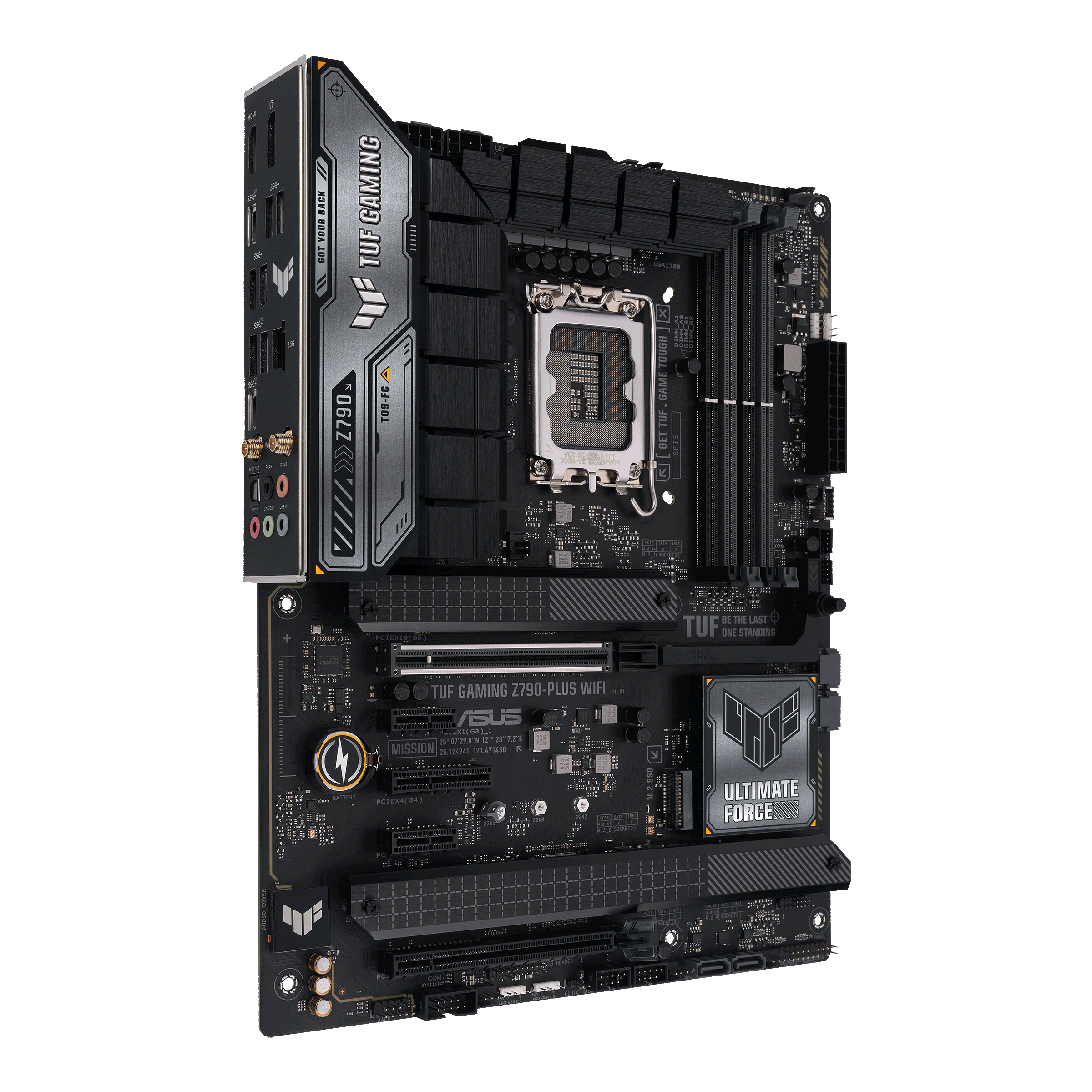

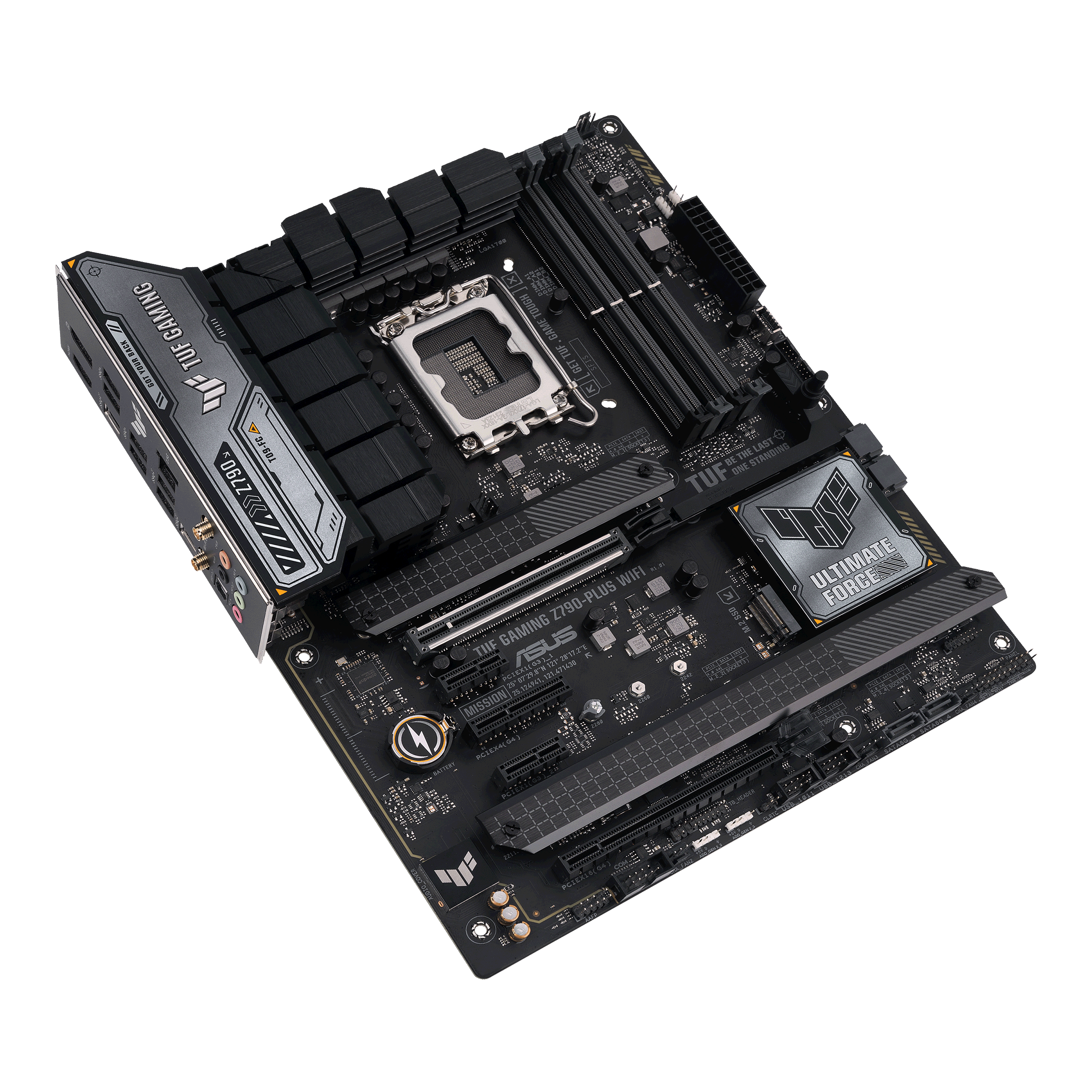

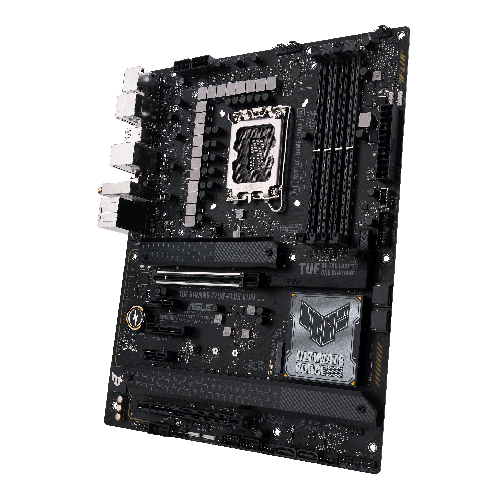

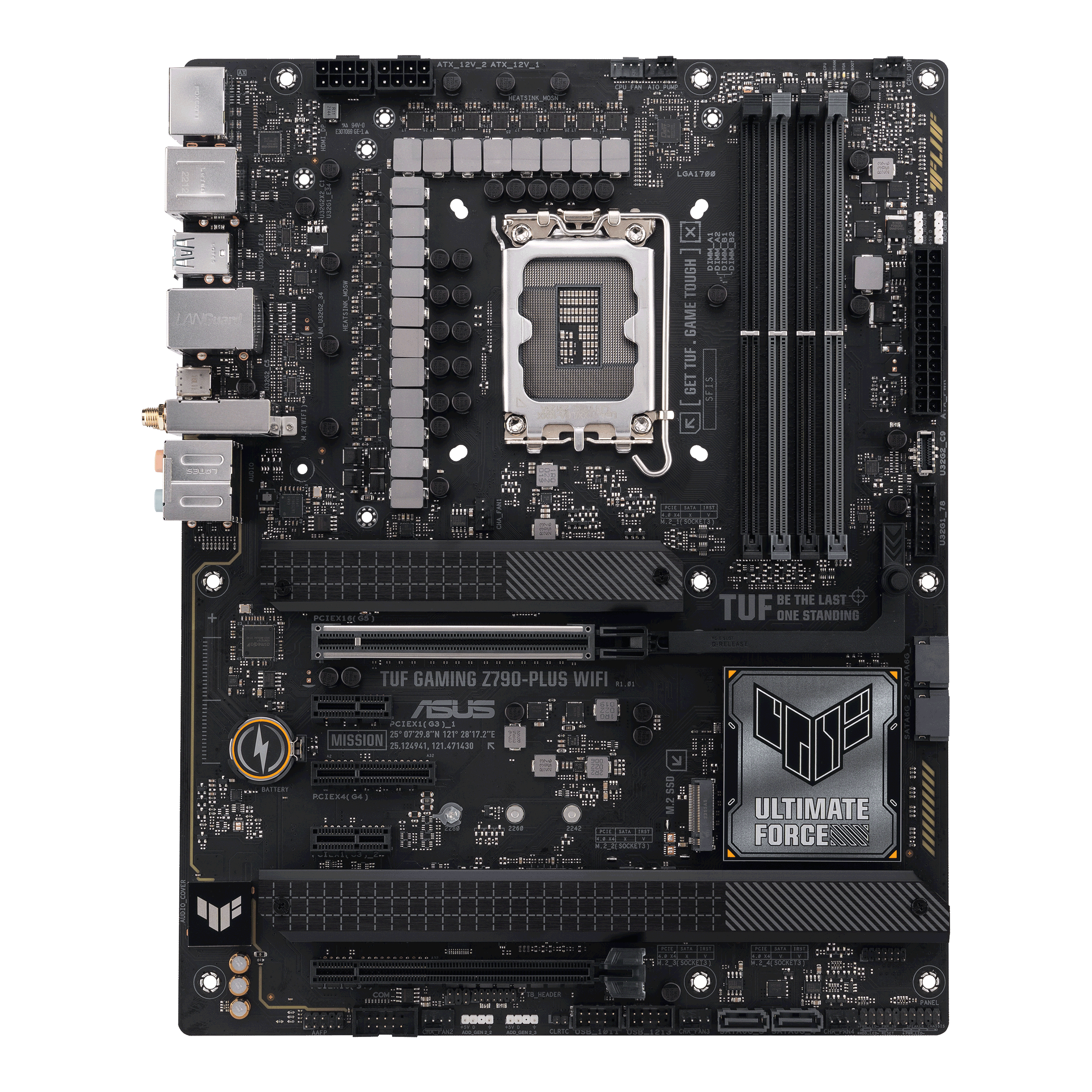

ASUS TUF Gaming Z790-Plus WiFi 6E, DDR5, Quad M.2, PCIe 5.0, USB 3.2, USB Type-C, Bluetooth 5.2
Model
Brand
ASUS
Series
TUF
Model
TUF GAMING Z790-PLUS WIFI
Part Number
90MB1D80-M0AAY0
Supported CPU
CPU Socket Type
LGA 1700
CPU Type
Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Expansion Slots
PCI Express 5.0 x16
1 x PCI Express 5.0 x16
PCI Express 4.0 x16
1 x PCIe 4.0 x16 slot (supports x4 mode)
Other Slots
1 x PCIe 4.0 x4 slot2 x PCIe 3.0 x1 slots* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage Devices
SATA 6Gb/s
4 x SATA 6Gb/s
M.2
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*Intel® 13th & 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel® Z790 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*- Impedance sense for front and rear headphone outputs- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)- Supports up to 32-Bit/192 kHz playback*Audio Features - Audio Shielding- Rear optical S/PDIF out port- Premium audio capacitors- Dedicated audio PCB layers- Audio Cover* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Onboard LAN
Max LAN Speed
1 x Intel® 2.5Gb EthernetTUF LANGuard
Wireless LAN
Wi-Fi 6E2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band*Bluetooth® v5.3*** WiFi 6E 6GHz regulatory may vary between countries.** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications

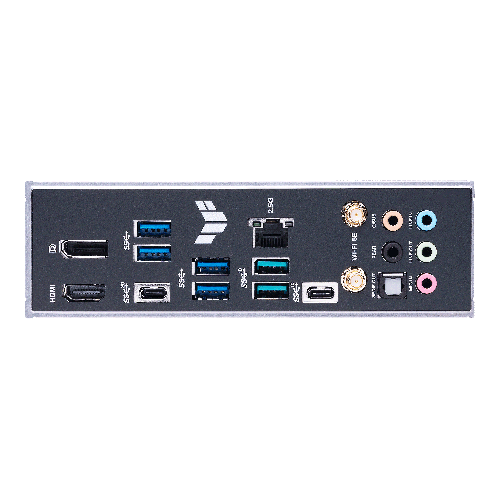

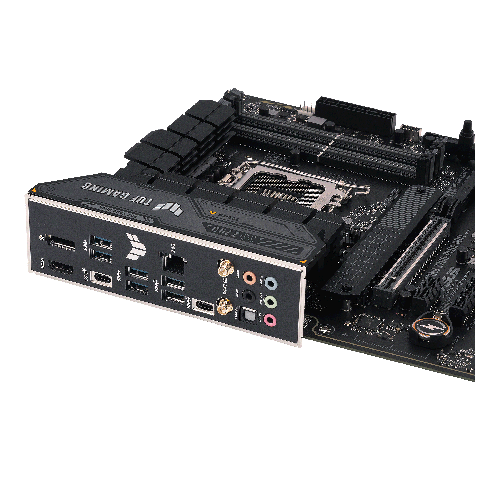

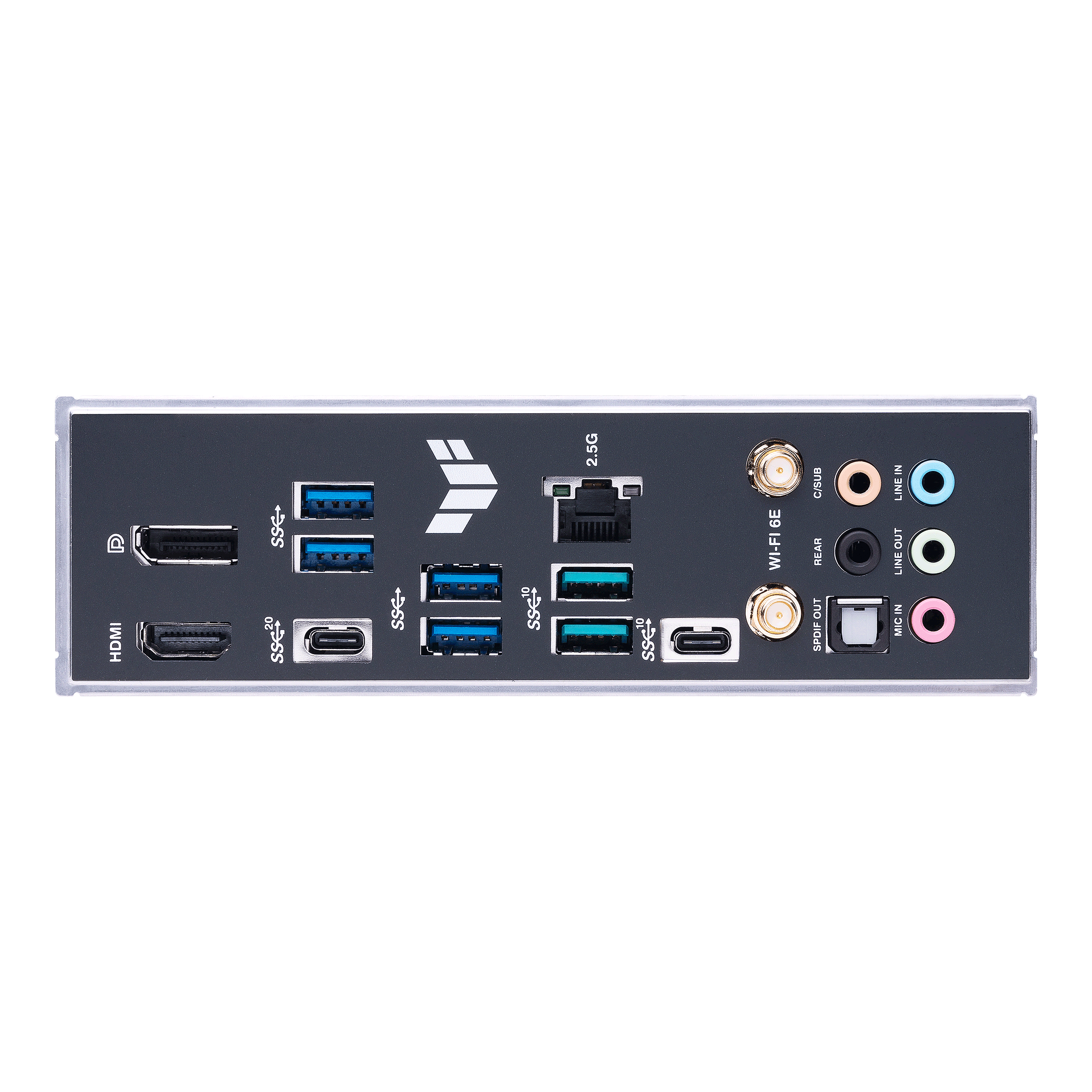

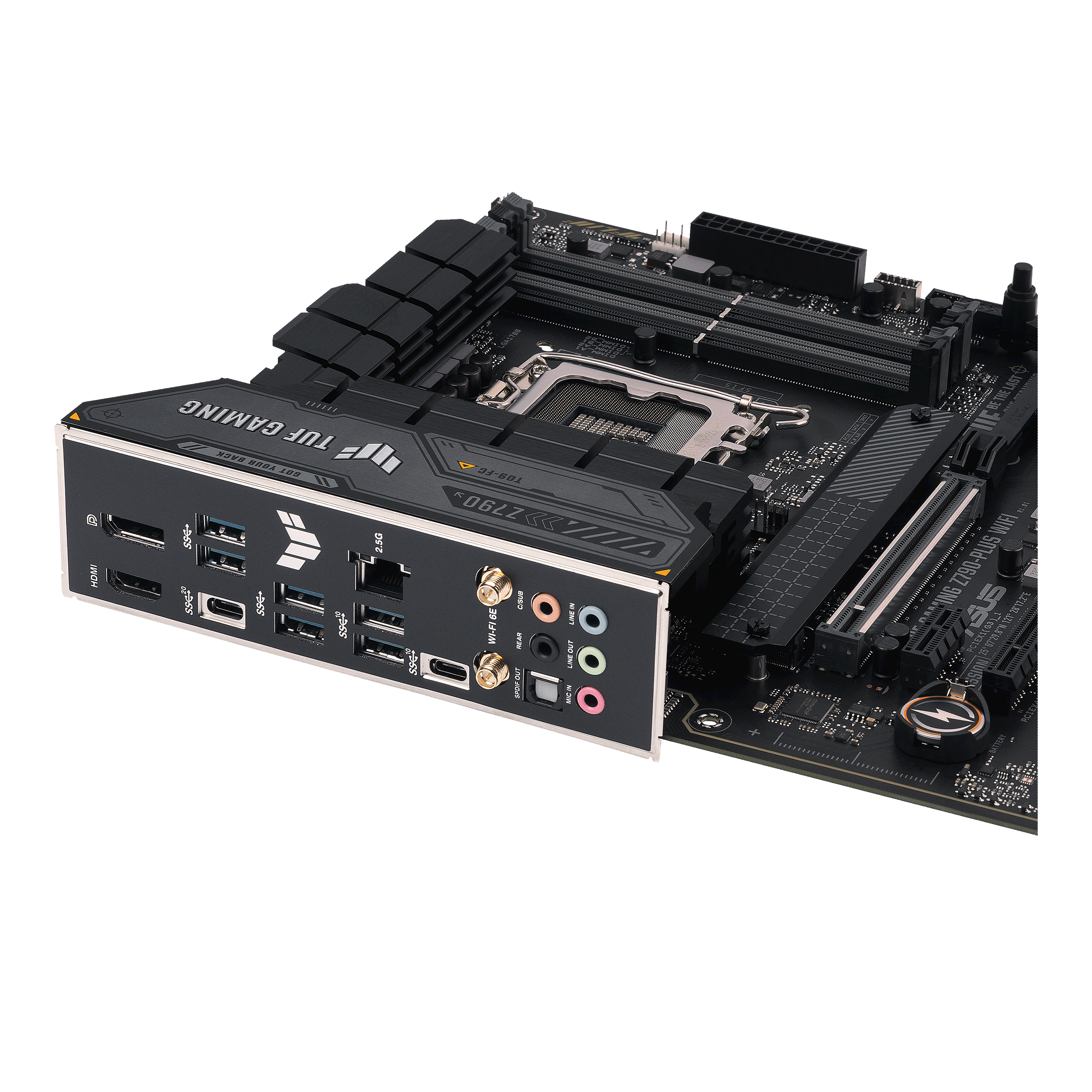

Rear Panel Ports
Back I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)4 x USB 3.2 Gen 1 ports (4 x Type-A)1 x DisplayPort1 x HDMI® port1 x Wi-Fi Module1 x Intel® 2.5Gb Ethernet port5 x Audio jacks 1 x Optical S/PDIF out port
Internal I/O Connectors
Other Connectors
Fan and Cooling related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header4 x 4-pin Chassis Fan headersPower related 1 x 24-pin Main Power connector2 x 8-pin +12V Power connectorStorage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s portsUSB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thunderbolt™ (USB4®) heade
Physical Spec
Form Factor
ATX
Dimensions (W x L)
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Windows Compatibility
Windows 11
Windows® 11, Windows® 10 64-bit
Features
Features
ASUS TUF PROTECTION- DIGI+ VRM (- Digital power design with DrMOS)- ESD Guards - TUF LANGuard- Overvoltage Protection- Safeslot- Stainless-Steel Back I/OASUS Q-Design - M.2 Q-Latch- PCIe Slot Q-Release- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designASUS EZ DIY- CPU Socket lever protector- ProCool- Pre-mounted I/O shield- SafeDIMMAURA Sync- Aura RGB header- Addressable Gen 2 headers
Additional Information
Date First Available
January 17, 2023
