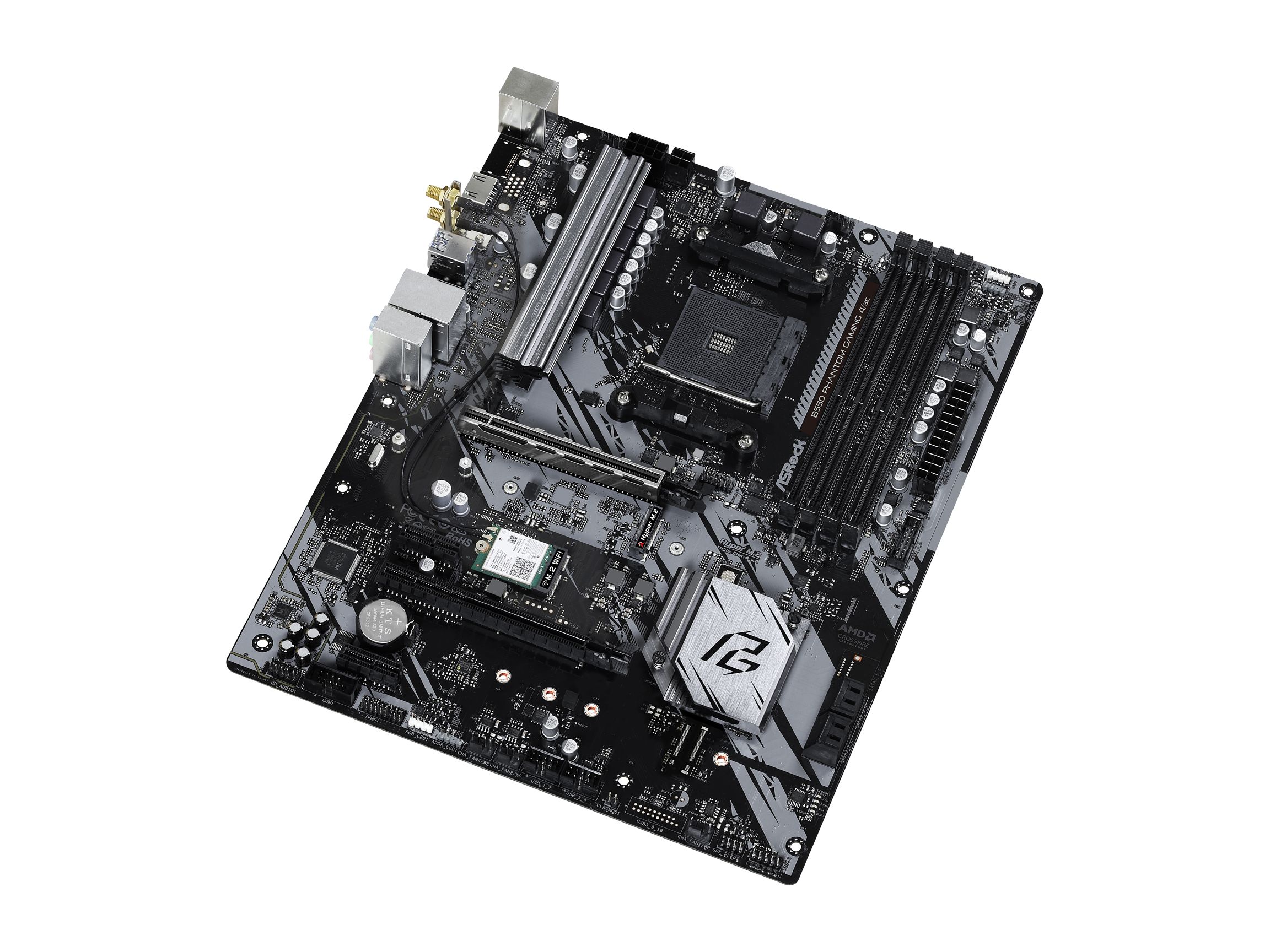

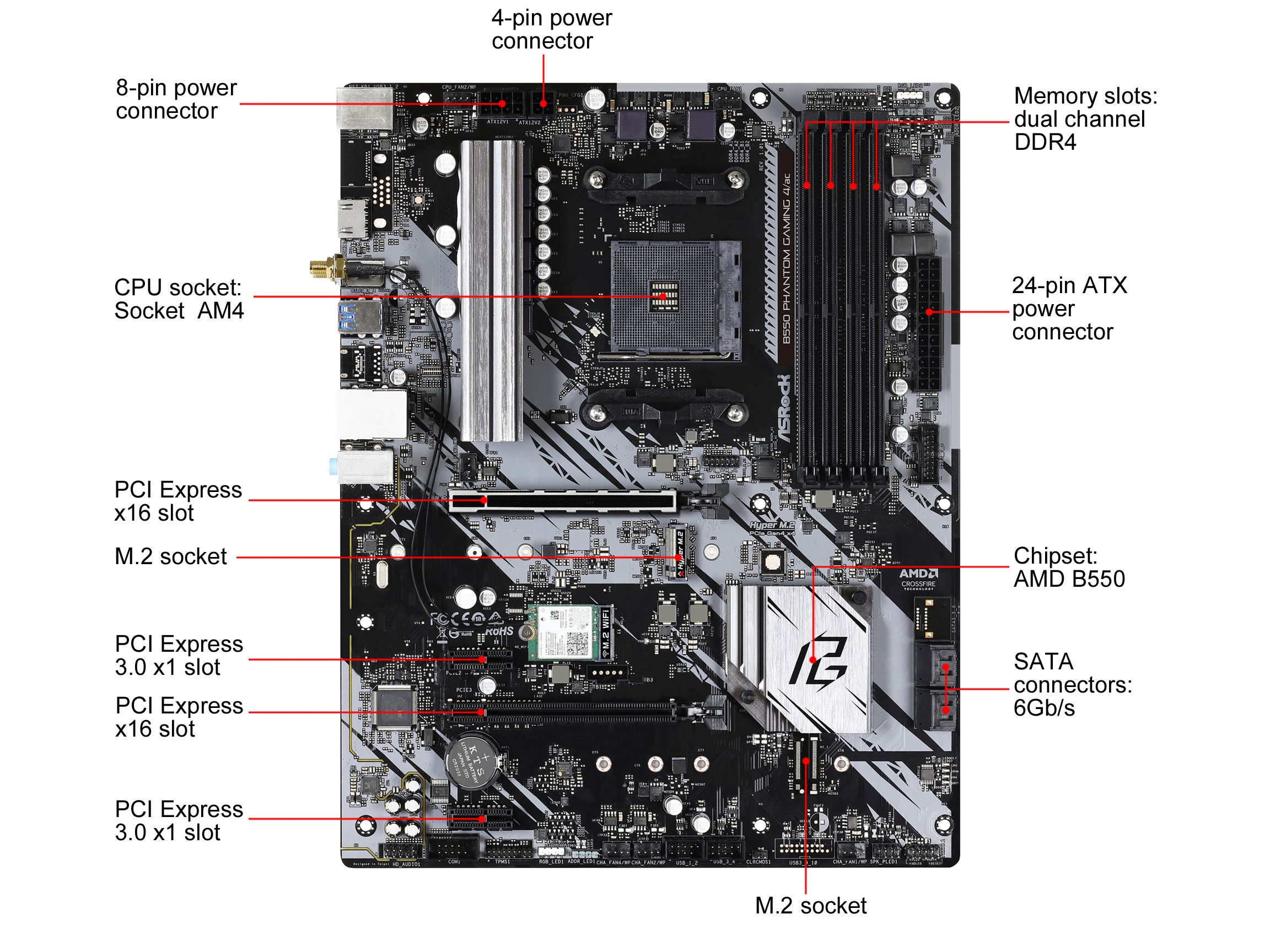

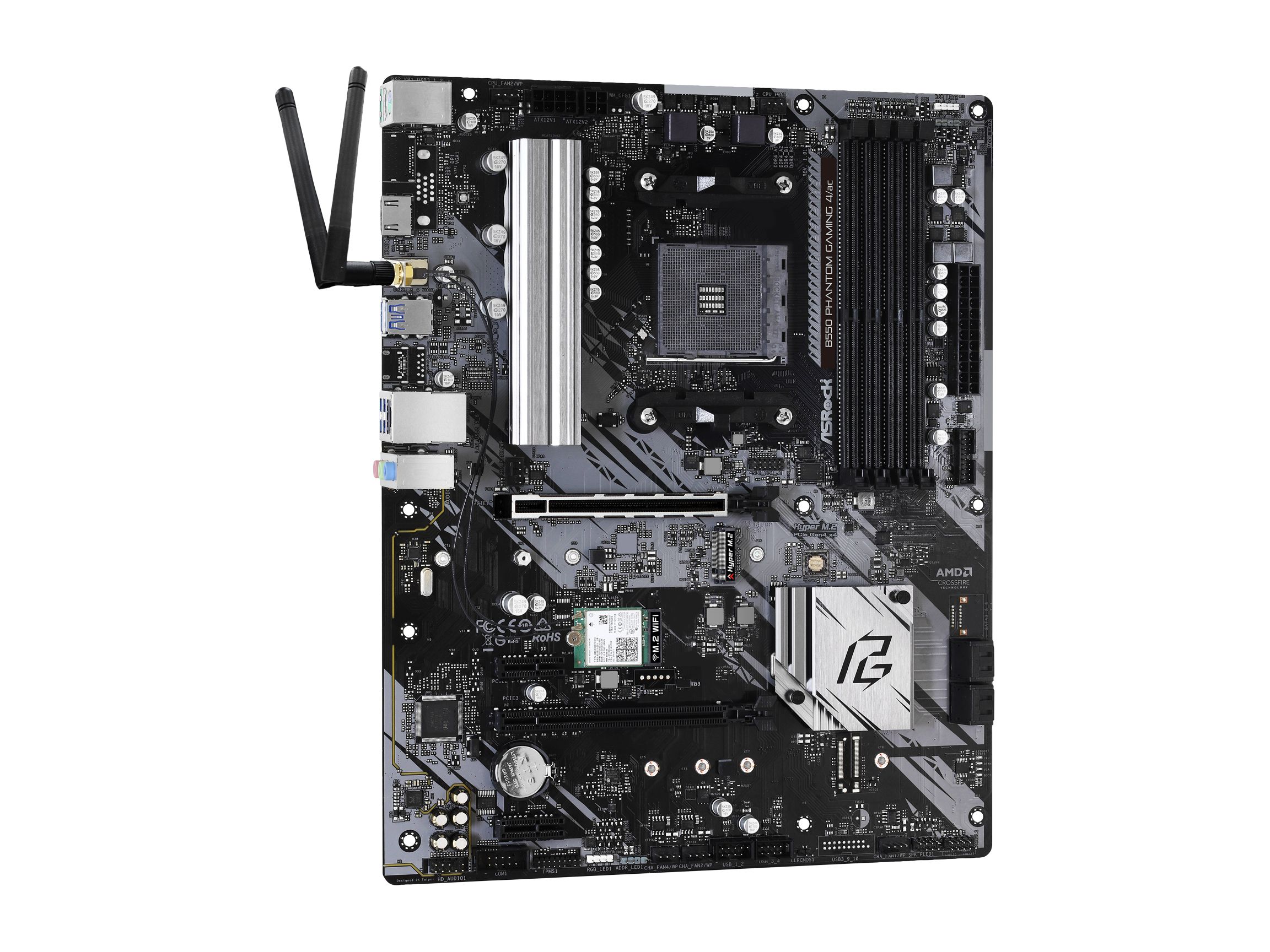

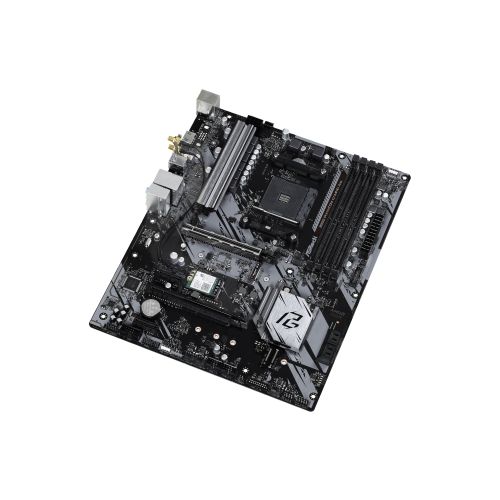

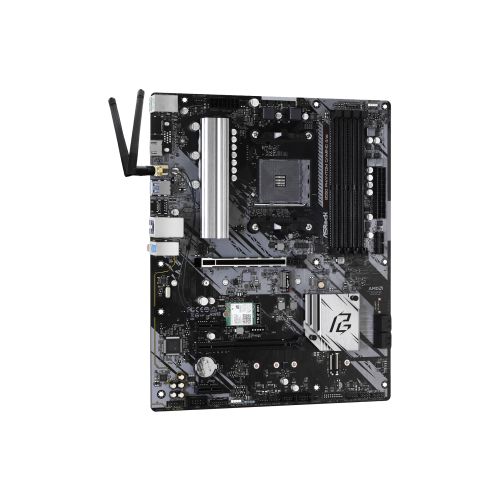

ASRock B550 Phantom Gaming 4/AC, DDR4, USB 3.2. GB LAN, WiFi, Bluetooth 4.2
Product Info
ASRock B550 Phantom Gaming 4/AC, DDR4, USB 3.2. GB LAN, WiFi, Bluetooth 4.2
Model
Brand
ASRock
Model
B550 Phantom Gaming 4/ac
Supported CPU
CPU Socket Type
AM4
CPU Type
Supports AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series Processors** Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G.* BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASRock website for CPU support list.
1 x PCI Express 4.0 x16** Actual support may vary by CPU.* Supports NVMe SSD as boot disks.
PCI Express 3.0 x16
1 x PCI Express 3.0 x16** Supports NVMe SSD as boot disks.
PCI Express x1
2 x PCI Express 3.0 x1
Other Slots
1 x M.2 Socket (Key E) with the bundled WiFi-802.11ac module
Storage Devices
SATA 6Gb/s
4 x SATA 6Gb/s
M.2
1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64Gb/s) (with Matisse) or Gen3x4 (32Gb/s) (with Renoir)** Supports NVMe SSD as boot disks.* Supports ASRock U.2 Kit.
SATA RAID
0/1/10
Onboard Video
Onboard Video Chipset
Supported only by CPU with integrated graphic
Onboard Audio
Audio Chipset
Realtek ALC1200
Audio Channels
7.1 Channels
Onboard LAN
LAN Chipset
Realtek RTL8111H
Max LAN Speed
1Gbps
Wireless LAN
Intel 802.11ac WiFi ModuleIEEE 802.11a/b/g/n/ac
Bluetooth
Bluetooth 4.2
Rear Panel Ports

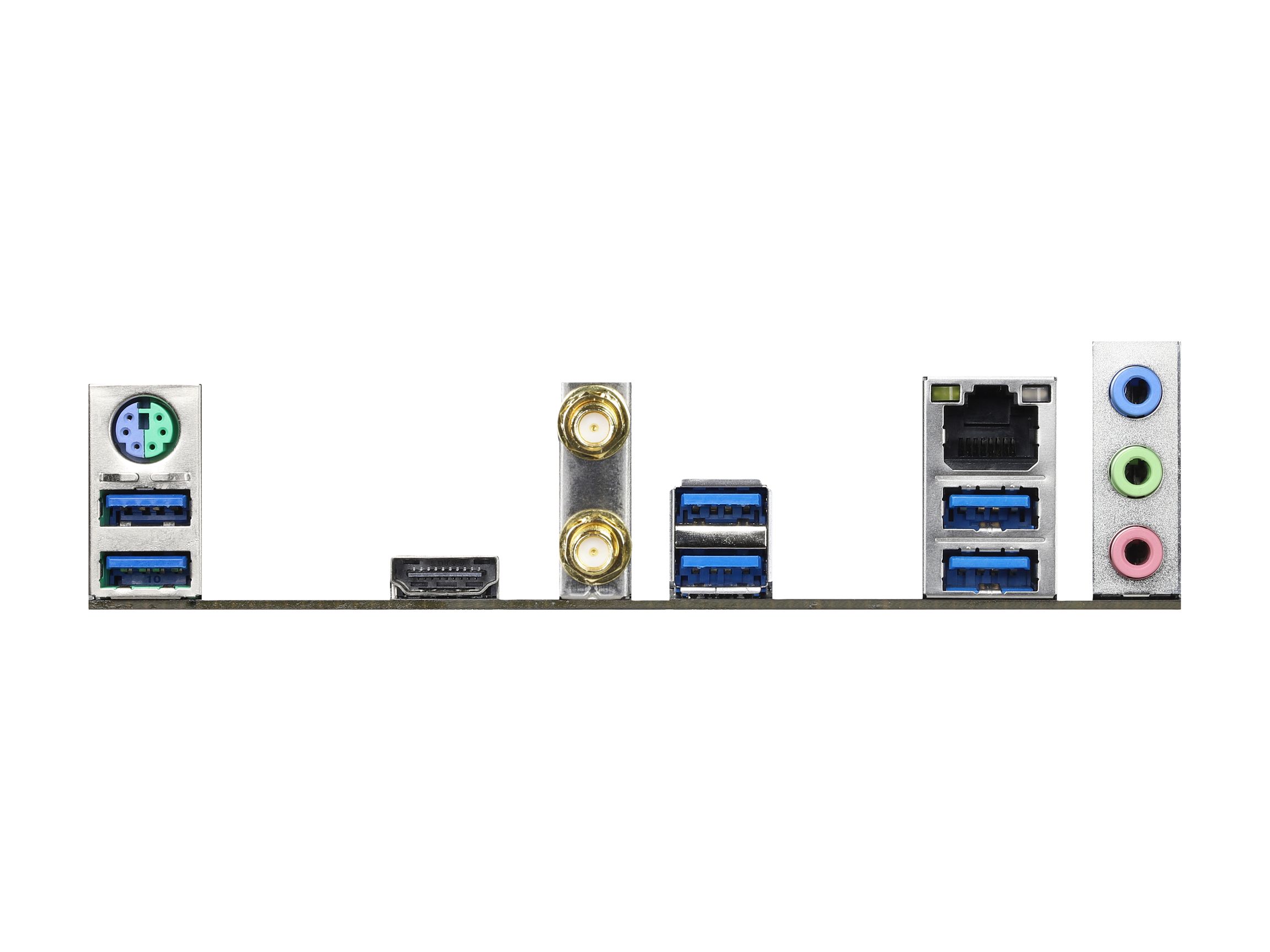

Back I/O Ports
2 x Antenna Ports1 x PS/2 Mouse/Keyboard Port1 x HDMI Port6 x USB 3.2 Gen1 Ports (Supports ESD Protection)1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Connectors
Onboard USB
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Other Connectors
1 x COM Port Header1 x SPI TPM Header1 x Power LED and Speaker Header2 x RGB LED Headers*2 x Addressable LED Headers**1 x CPU Fan Connector (4-pin)***1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****1 x Front Panel Audio Connector* Support in total up to 12V/3A, 36W LED Strip.** Support in total up to 5V/3A, 15W LED Strip.*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.**** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.**** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.
Physical Spec
Form Factor
ATX
LED Lighting
RGB
Dimensions (W x L)
12.0" x 9.6"
Power Pin
1 x 24-pin ATX Power Connector1 x 8-pin 12V Power Connector1 x 4-pin 12V Power Connecto
Windows 11 Compatibility
Windows 11
Supported
Features
Features
Gaming Armor:Memory- 15µ Gold Contact in DIMM SlotsCooling- XXL Aluminum Alloy HeatsinkAudio- Nahimic AudioUnique Feature:ASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium 50A Power Choke- Sapphire Black PCB- High Density Glass Fabric PCB- 2oz Copper PCBIntel 802.11ac WiFiASRock Steel Slot Gen4ASRock Hyper M.2 (PCIe Gen4x4)ASRock POST Status Checker (PSC)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP ShopBIOS:- 256MB AMI UEFI Legal BIOS with GUI support- Supports "Plug and Play"- ACPI 5.1 compliance wake up events- Supports jumperfree- SMBIOS 2.3 support- CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustmentSoftware and UEFI:Software- ASRock Motherboard Utility (Phantom Gaming Tuning)- ASRock Polychrome SYNC- ASRock Key Master- ASRock XFast LANUEFI- ASRock Full HD UEFI- ASRock Instant Flash* These utilities can be downloaded from ASRock Live Update & APP Shop.Support CD:- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and ToolbarHardware Monitor:- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, +1.8V, VDDPOS:- Microsoft Windows 10 64-bitCertifications:- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)
Packaging
Package Contents
Accessories:- Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 2 x ASRock WiFi 2.4/5 GHz Antennas- 1 x Screw for M.2 Socket
Additional Information
Date First Available
June 12, 2020
