2 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
Intel Optane Ready
Yes
SATA RAID
0/1/5/10
Onboard Audio
Audio Chipset
Realtek ALC887
Audio Channels
7.1 Channels* * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
Onboard LAN
LAN Chipset
Realtek GbE LAN chip
Max LAN Speed
10/100/1000Mbps
Wireless LAN
Intel Wi-Fi 3168 Wi-Fi802.11a/b/g/n/ac
Bluetooth
Bluetooth 4.2
Rear Panel Ports

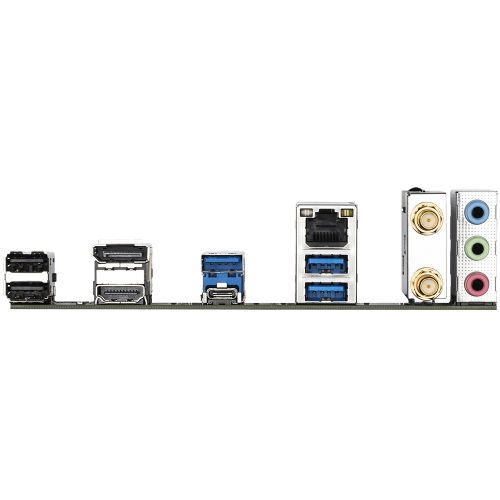

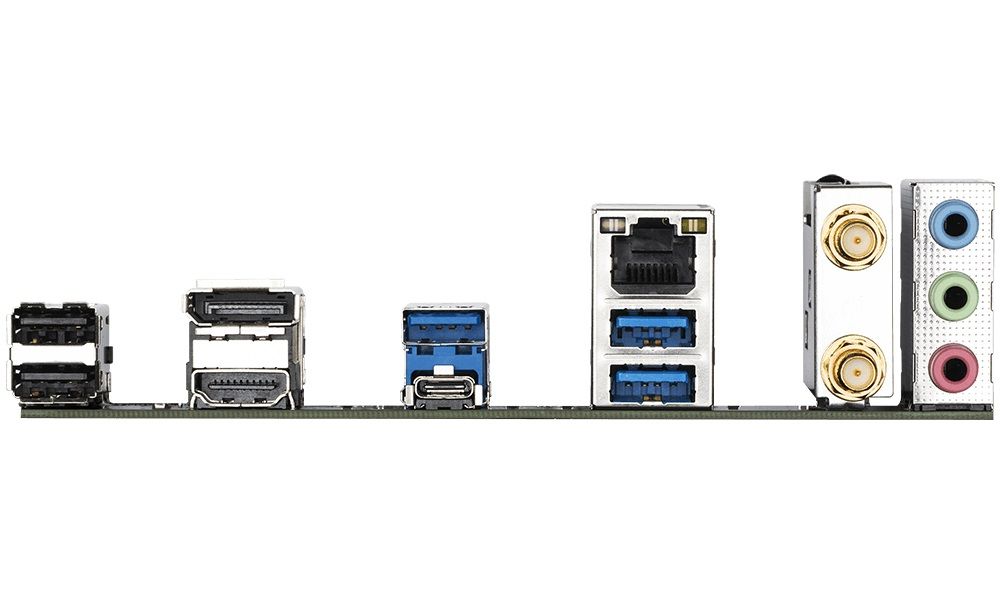

Back I/O Ports
1 x HDMI port4 x USB 3.2 Gen 1 +DP port 2 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x SMA antenna connectors (1T1R) 3 x audio jacks
Internal I/O Connectors
Onboard USB
3 x USB 3.2 Gen 1 header + 1 USB -C 2 x USB 2.0/1.1 headers
Other Connectors
1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Clear CMOS jumpe
Physical Spec
Form Factor
ATX
LED Lighting
RGB
Dimensions (W x L)
9.6" x 8.9"
Power Pin
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connecto
Windows Compatibility
Windows 11
Supported
Additional Information
Date First Available
October 28, 2021
