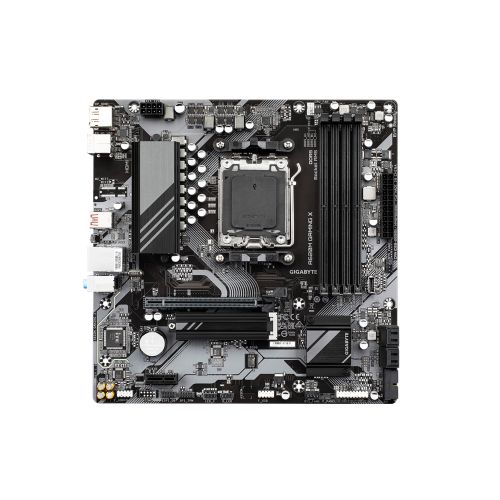

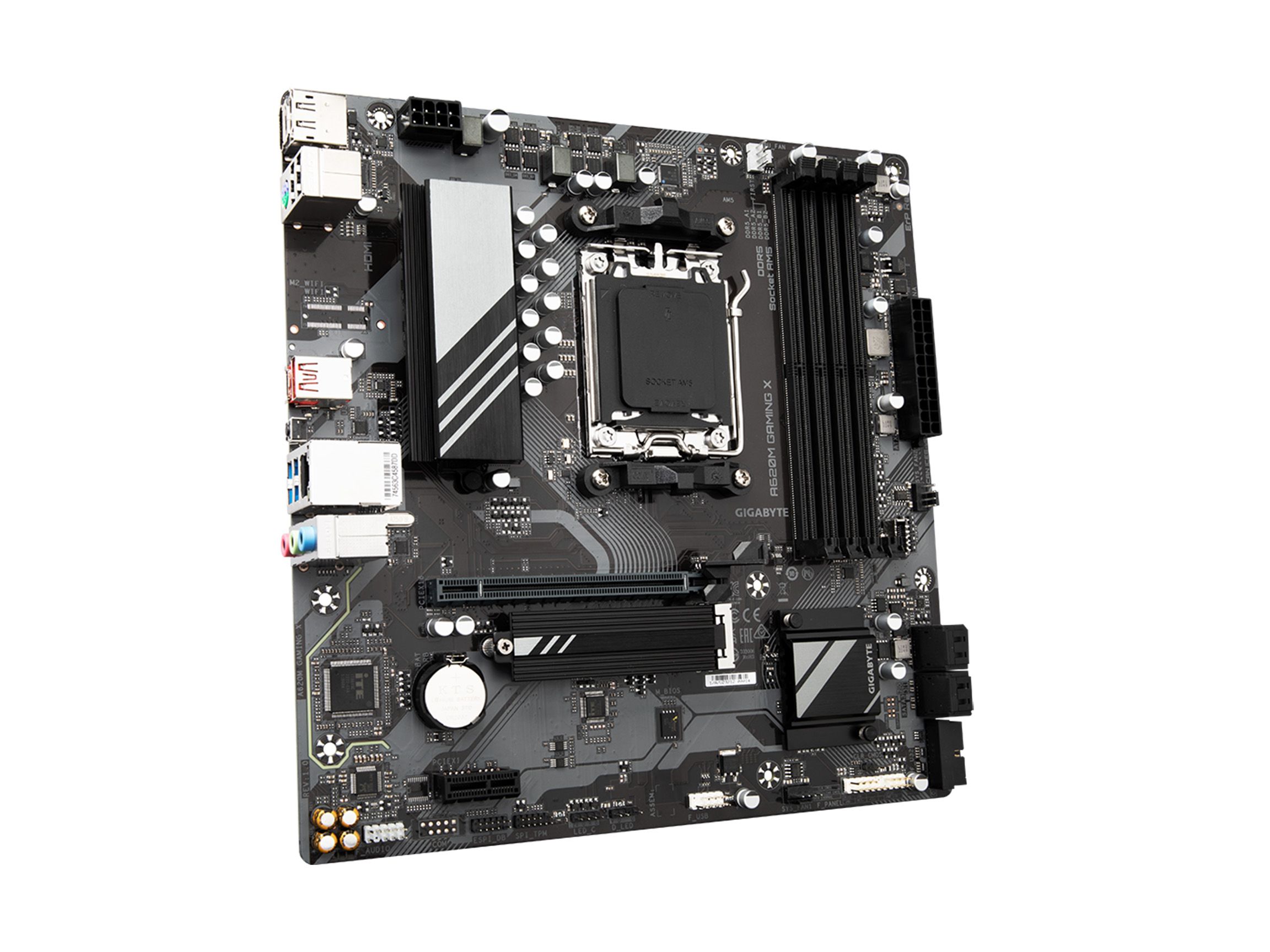

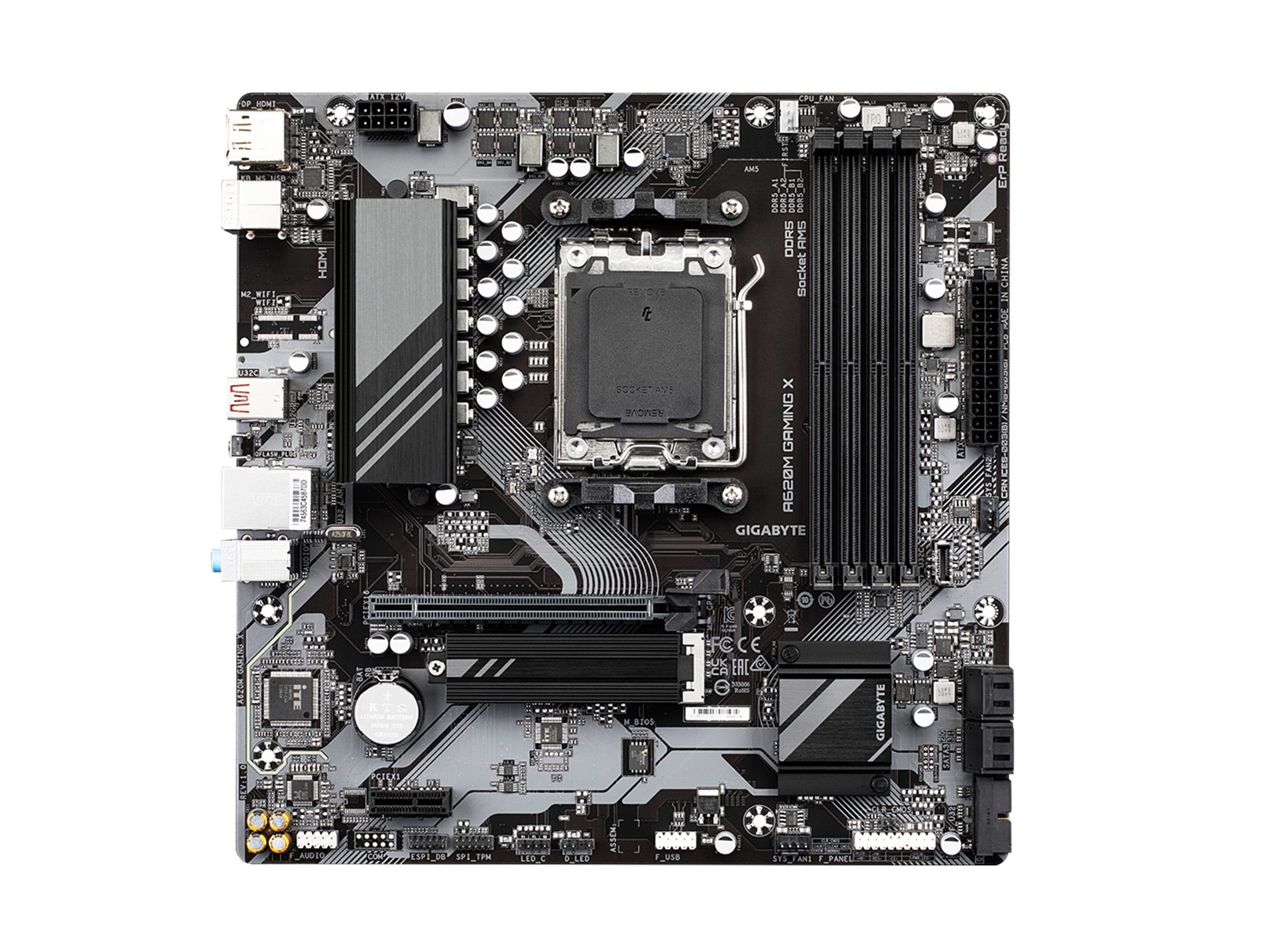

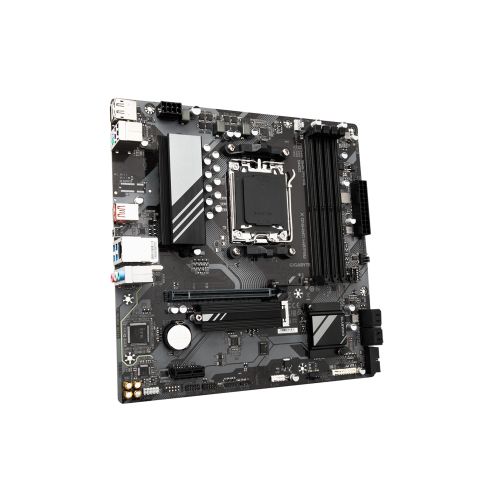

Gigabyte A620M Gaming X AM5, DDR5, USB 3.2, USB-C, GB LAN
Product Info
Gigabyte A620M Gaming X AM5, DDR5, USB 3.2, USB-C, GB LAN
Model
Brand
GIGABYTE
Model
A620M GAMING X

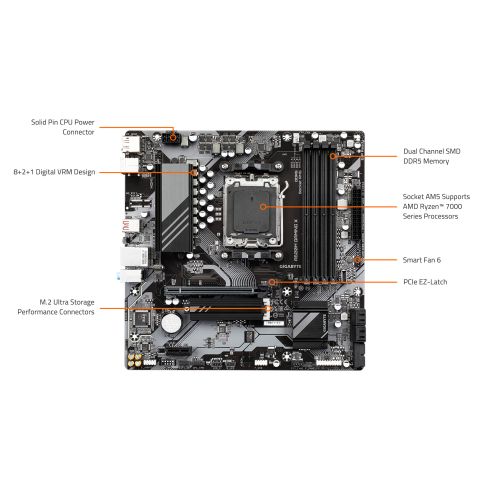

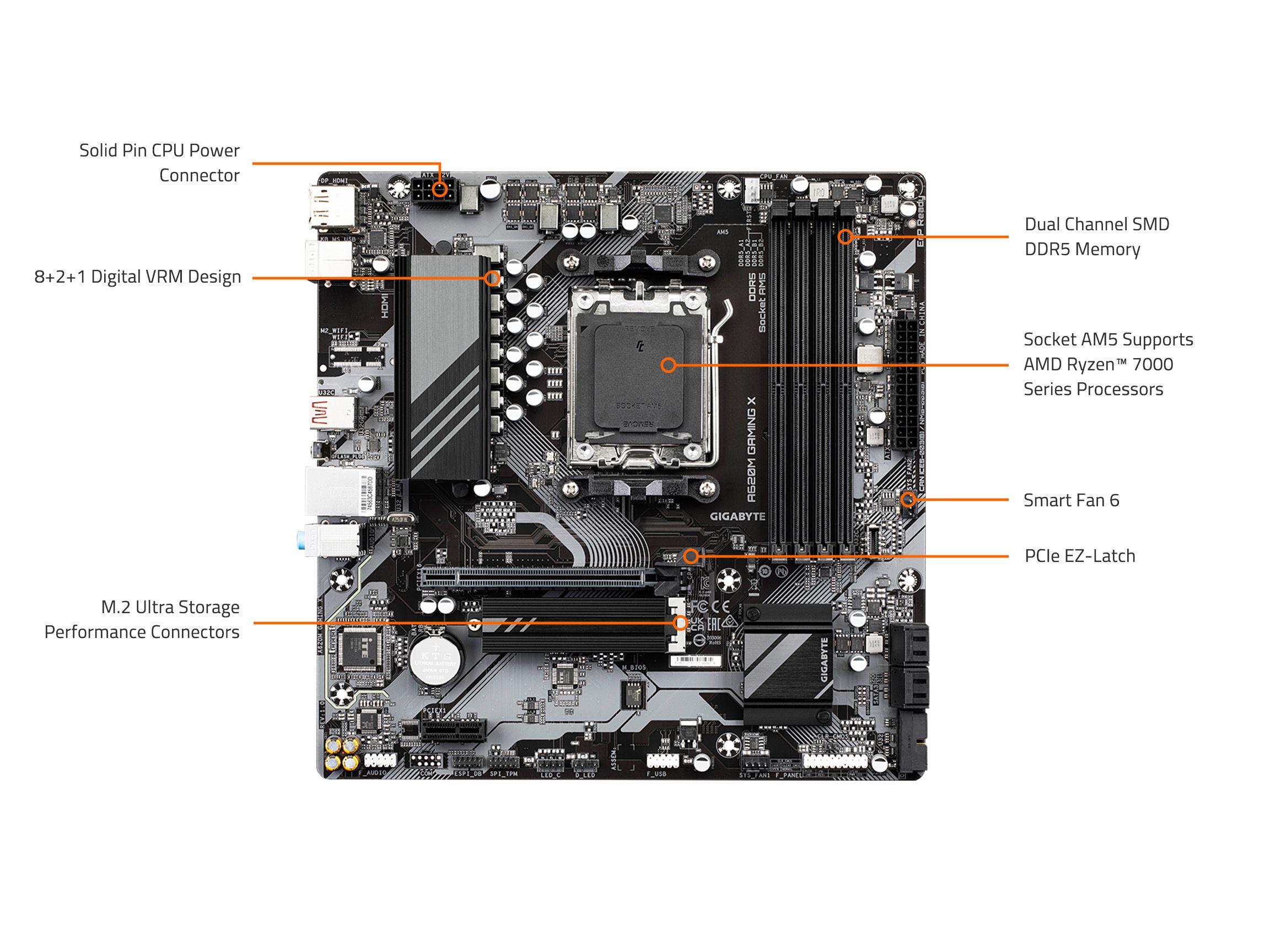

Supported CPU
CPU Socket Type
AM5
CPU Type
Ryzen 7000 Series
Chipsets
Chipset
AMD A620
Memory
Number of Memory Slots
4x288pin (DDR5)
Memory Standard
Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
Maximum Memory Supported
128GB
Channel Supported
Dual Channel
ECC Supported
Non-ECC
Buffer Supported
Un-buffered
Memory Feature
4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Expansion Slots
PCI Express 4.0 x16
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express x1
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Devices
SATA 6Gb/s
4 x SATA 6Gb/s
M.2
1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)
SATA RAID
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Onboard Audio
Audio Chipset
Realtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Audio Channels
7.1 Channels
Onboard LAN
LAN Chipset
Realtek GbE LAN chip (1 Gbps/100 Mbps)
Max LAN Speed
1Gbps
Rear Panel Ports
Back I/O Ports

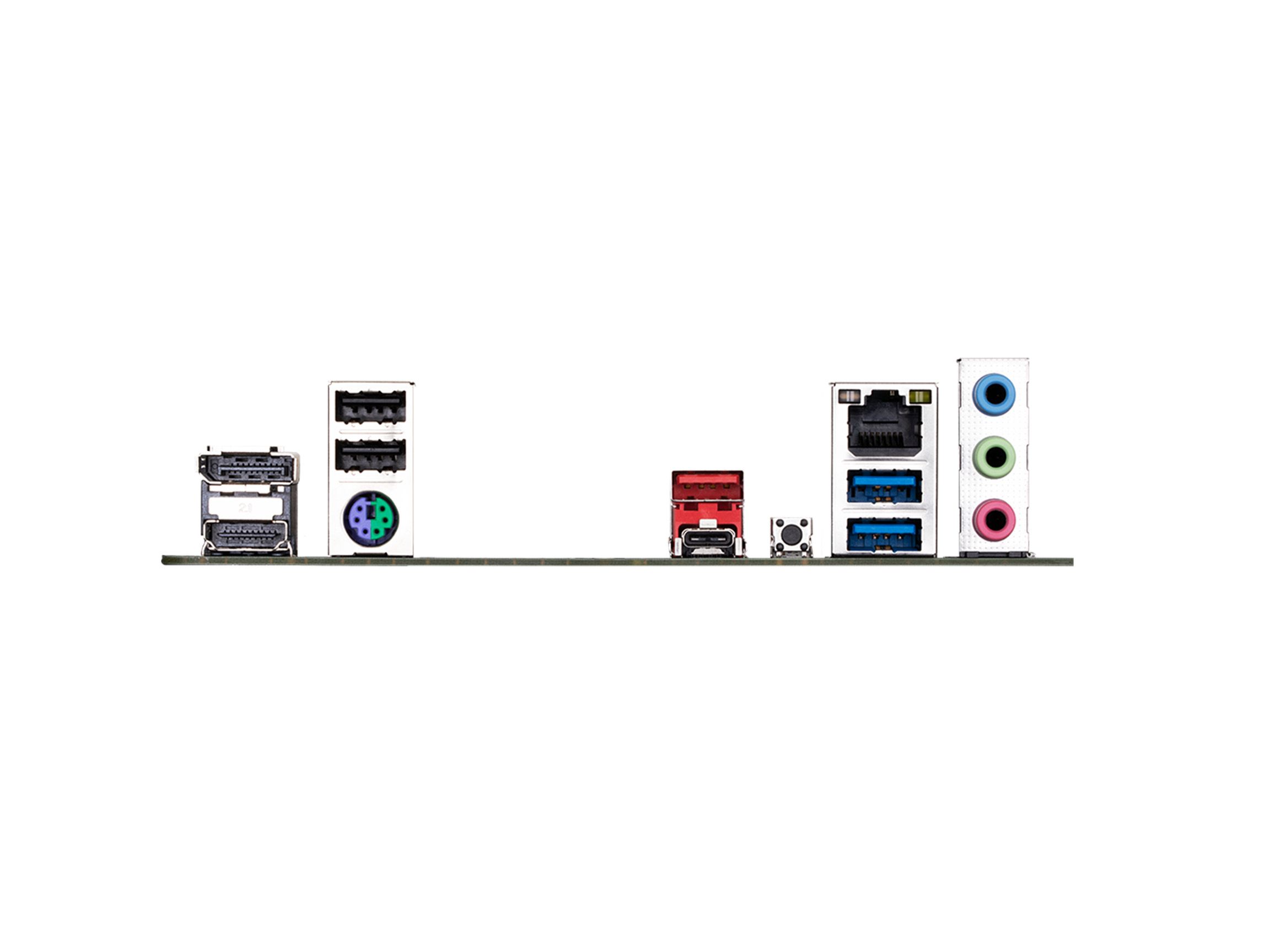

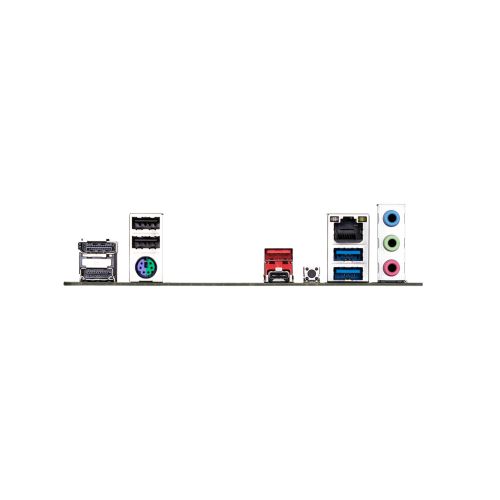

1 x PS/2 keyboard/mouse port1 x USB Type-C port, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 2 Type-A port (red)2 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports1 x HDMI port1 x DisplayPort1 x Q-Flash Plus button1 x RJ-45 port3 x audio jacks
Internal I/O Connectors
Onboard USB
1 x USB Type-C header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 heade
Other Connectors
1 x CPU fan header2 x system fan headers1 x addressable LED strip header1 x RGB LED strip header1 x M.2 Socket 3 connector4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x Clear CMOS jumpe
Physical Spec
Form Factor
Micro ATX
Dimensions (W x L)
9.6" x 9.6"
Power Pin
1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connecto
Windows 11 Compatibility
Windows 11
Supported
Features
Features
Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash Plus
Additional Information
Date First Available
April 12, 2023
