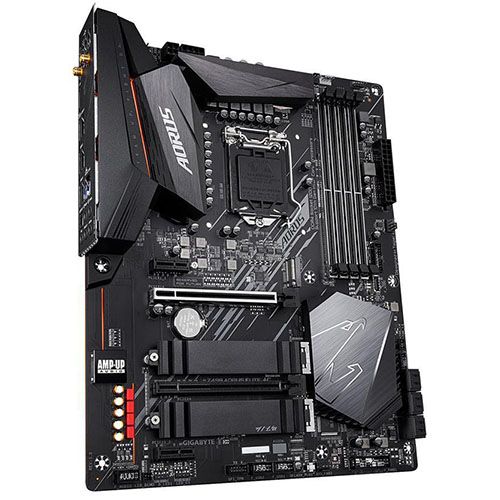

GIGABYTE Z590 AORUS ELITE AX, onboard HDMI video, USB 3.2, WiFi 6 AX200, Bluetooth 5.1
lrg.jpg)
Product Info
GIGABYTE Z590 AORUS ELITE AX, onboard HDMI video, USB 3.2, WiFi 6 AX200, Bluetooth 5.1
Model
| Brand | GIGABYTE |
| Model | Z490 AORUS ELITE AC |
Supported CPU
| CPU Socket Type | LGA 1200 |
| CPU Type | Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors / Intel Pentium processors/Intel Celeron processors in the LGA1200 package |
Chipsets
| Chipset | Intel Z490 |
Onboard Video
| Onboard Video Chipset |
Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. Maximum shared memory of 512MB |
Memory
| Number of Memory Slots | 4~288pin |
| Memory Standard |
Intel Core i9/i7 processors: Support for DDR4 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
Expansion Slots
| PCI Express 3.0 x16 |
1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) |
| PCI Express x1 |
2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
Storage Devices
| SATA 6Gb/s | 6 x SATA 6Gb/s |
| M.2 | 2 x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB/M2A_SB) |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/5/10 |
Onboard Audio
| Audio Chipset | Realtek ALC1200 |
| Audio Channels |
2/4/5.1/7.1-channel Support for S/PDIF Out |
Onboard LAN
| LAN Chipset | Realtek 2.5GbE LAN chip |
| Max LAN Speed | 10/100/1000/2500Mbps |
| Wireless LAN |
Intel Wi-Fi AC 9462: Intel CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band Support for 1x1 11ac wireless standard and up to 433 Mbps data rate * Actual data rate may vary depending on environment and equipment. |
| Bluetooth | Bluetooth 5 |
Rear Panel Ports
| Back I/O Ports |
2 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (1T1R) 1 x HDMI port 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks |
Internal I/O Connectors
| Onboard USB |
1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers |
| Other Connectors |
1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 2 x Thunderbolt add-in card connectors 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
Physical Spec
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connecto |
Features
| Features |
Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install. BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Bundled Software: Norton Internet Security (OEM version) Realtek 8125 Gaming LAN Bandwidth Control Utility Operating System: Support for Windows 10 64-bit |
Additional Information
| Date First Available | April 23, 2020 |
