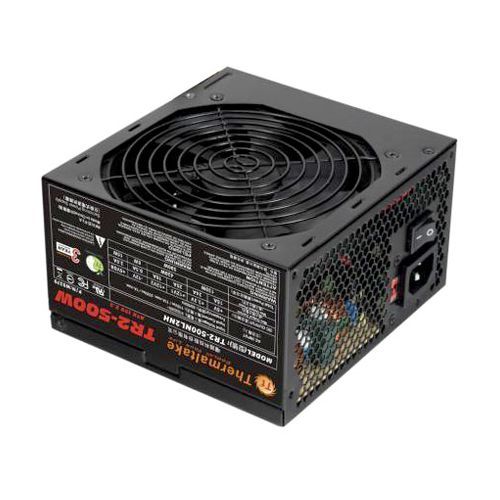

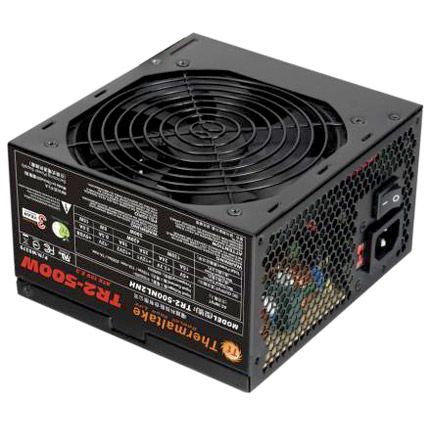

Thermaltake 500W ultra quiet ATX Power Supply (6+2pin)x2

Product Info

Thermaltake 500W ultra quiet ATX Power Supply (6+2pin)x2

Model

Brand	Thermaltake
Model	PS-SPD-0500NPCWUS-W
Series	SMART Series

Details

Type	ATX12V / EPS12V
Maximum Power	500W
Fans	1 x 120mm Intelligent Cooling Fan
PFC	Active
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	2 x 6+2-Pin
SATA Power Connector	6
SLI	SLI Ready
Haswell Support	Yes
CrossFire	CrossFire Ready
Modular	Hardlined
Power Good Signal	100-500ms
Hold-up Time	16.6ms min.
Efficiency	80% Efficiency
Energy-Efficient	80 PLUS Certified
Over Voltage Protection	Yes
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Input Current	8A
Output	+3.3V@20A, +5V@15A, +12V@35A, [email protected], [email protected]
MTBF	>100,000 Hours
Approvals	CE, CB, TUV, UL, FCC
Dimensions	3.40" x 5.90" x 5.50"
Weight	4.25 lbs.

Protection

Short Circuit Protection	Yes
Over Power Protection	Yes

Features

Connectors	1 x 20+4-pin ATX 1 x 4+4-pin EPS 2 x 6+2-pin PCI-E 6 x SATA 3 x Peripheral 1 x Floppy
Features	Compliance with Intel ATX 12V 2.31 & EPS 12V 2.92 standards 80 PLUS Certified - 80% efficiency under typical load Single +12V rail Design Supports Intel C6 Status for improved efficiency Ultra-quiet 120mm fan with intelligent temperature control Hardlined cables for straight forward installation
